Laser vs Plasma vs Waterjet Cutting: Complete Technology Comparison
Choosing between laser, plasma, and waterjet cutting technologies can make or break your fabrication operation's profitability. This comprehensive guide compares all three technologies across precision, speed, cost, material capability, and ROI—with real-world case studies to inform your equipment decision.
🎯 Quick Decision Guide: Laser dominates precision metal cutting (±0.1mm, 75% market share). Plasma excels at thick plate speed (10-150mm steel, 2-3x faster than laser). Waterjet handles materials others can't (composites, glass, titanium) with zero thermal distortion. Read on for detailed comparison.

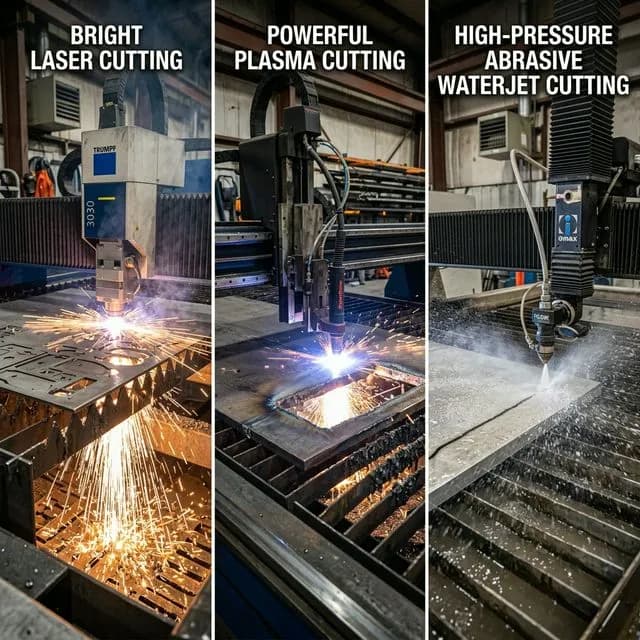

1. Technology Overview and Operating Principles
Laser Cutting
Principle: Focused high-intensity light beam melts/vaporizes material. Assist gas expels molten material and protects optics.
Types: Fiber laser (1064nm, metals), CO2 laser (10600nm, non-metals), green/UV lasers (specialty applications).
Key Advantage: Exceptional precision (±0.05-0.10mm), minimal HAZ, narrow kerf (0.1-0.3mm), excellent edge quality, high automation potential.
Limitation: Reflective materials challenging (aluminum, copper require high power), thick material cutting slower/costlier than plasma, high initial investment.
Plasma Cutting
Principle: Electrically conductive ionized gas (plasma arc at 20,000-30,000°C) melts material. High-velocity gas removes molten metal.
Types: Conventional plasma (80-200A), high-definition plasma (HD, precision), underwater plasma (fume reduction).
Key Advantage: Extremely fast on thick materials (3x faster than laser on 20mm+ steel), low operating cost, handles 10-150mm thickness economically.
Limitation: Limited precision (±0.3-0.8mm conventional, ±0.15-0.30mm HD), wide kerf (1.5-4.0mm), larger HAZ, rough edge quality, conductive materials only.
Waterjet Cutting
Principle: Ultra-high pressure water (3,000-6,000 bar / 50,000-90,000 PSI) mixed with abrasive garnet cuts through material erosion. No heat generation.
Types: Pure waterjet (soft materials, food), abrasive waterjet (metals, composites, stone), 5-axis waterjet (3D cutting).
Key Advantage: Universal material capability (metals, composites, glass, ceramics, foam), zero HAZ, no material property changes, extremely thick cutting (200mm+), no toxic fumes.
Limitation: Slow cutting speed (5-10x slower than laser), very high operating cost (abrasive $0.20-0.40/kg), moisture/rust concerns, edge taper on thick materials, high maintenance.
2. Detailed Performance Comparison
| Parameter | Laser Cutting | Plasma Cutting | Waterjet Cutting |
|---|---|---|---|
| Cutting Precision | ±0.05-0.10mm Fiber laser, thin materials | ±0.15-0.80mm HD plasma ±0.15mm, conventional ±0.5mm | ±0.10-0.25mm Varies with thickness and head quality |
| Edge Quality (Ra) | 1.6-6.3μm Smooth, minimal post-processing | 6.3-25μm Rougher, HD plasma better | 3.2-12.5μm Good, but potential taper/striation |
| Heat Affected Zone (HAZ) | 0.05-0.3mm Minimal, fiber better than CO2 | 0.5-2.0mm Significant thermal impact | 0mm (zero) Cold cutting process |
| Cutting Speed (10mm steel) | 2.0-3.0 m/min 6kW fiber laser, oxygen assist | 2.5-4.0 m/min 200A plasma, fastest for this thickness | 0.15-0.30 m/min 5-10x slower than thermal methods |
| Max Thickness (Carbon Steel) | 40mm (practical) 12-20kW lasers can cut 50mm but slow/expensive | 150mm+ Economical up to 100mm, capable beyond | 200mm+ Thickness limited only by tank depth |
| Material Compatibility | Metals (excellent), non-metals (CO2 only), reflective metals challenging | Conductive materials only (ferrous, non-ferrous metals, limited alloys) | Universal (metals, composites, ceramics, glass, stone, plastics, foam) |
| Kerf Width | 0.1-0.3mm Narrowest kerf = max material efficiency | 1.5-4.0mm Wide kerf wastes material on complex parts | 0.8-1.5mm Moderate kerf, better than plasma |
3. Comprehensive Cost Analysis
Total cost of ownership includes capital investment, operating costs (consumables, utilities, labor), and maintenance. The lowest purchase price rarely equals lowest cost per part over equipment lifetime.
Laser Cutting Costs
- • 1kW fiber: $50,000-80,000
- • 3kW fiber: $80,000-120,000
- • 6kW fiber: $120,000-180,000
- • 12kW fiber: $200,000-300,000
- • 150W CO2: $15,000-40,000
- • Electricity: $2-6 (50-60% efficiency)
- • Assist gas: $3-15 (O₂ $3-5, N₂ $8-15)
- • Consumables: $1-3 (lenses, nozzles, windows)
- • Maintenance: $1-2 (fiber), $3-5 (CO2)
- • Total: $7-31/hour
300×300mm bracket, 3mm steel, 6kW fiber: Material $2.50, cutting 45 seconds at $15/hr = $0.19, total $2.69. High volume = $2.50-3.00 all-in.
Plasma Cutting Costs
- • Handheld: $1,000-3,000
- • 100A CNC table: $10,000-20,000
- • 200A CNC: $20,000-40,000
- • HD plasma: $40,000-70,000
- • Underwater plasma: $50,000-90,000
- • Electricity: $1-4 (30-40% efficiency)
- • Plasma gas: $0.50-2 (air/O₂/N₂)
- • Shield gas: $0.50-1
- • Consumables: $3-8 (electrodes, nozzles, shields, high wear)
- • Maintenance: $0.50-2
- • Total: $5.50-17/hour
Same 300×300mm bracket, 3mm steel, 200A plasma: Material $2.50 (wider kerf = more waste), cutting 40 seconds at $10/hr = $0.11, total $2.61. Lower precision may require grinding (+$0.50).
Waterjet Cutting Costs
- • Basic pure waterjet: $40,000-80,000
- • Abrasive waterjet: $80,000-150,000
- • 5-axis waterjet: $150,000-250,000
- • Multi-head systems: $200,000-400,000
- • Electricity: $2-5 (pump 50-100 HP)
- • Abrasive: $15-30 (garnet $0.20-0.40/kg, 50-100 kg/hr)
- • Water: $0.50-2
- • Consumables: $2-5 (orifices, mixing tubes)
- • Maintenance: $2-5 (pump seals, valves)
- • Total: $21.50-47/hour
Same 300×300mm bracket, 3mm steel, waterjet: Material $2.50, cutting 5 minutes at $35/hr = $2.92, total $5.42. 2x cost of laser, but justified for materials laser can't handle.
💡 Cost Reality Check: Waterjet operating cost is 2-4x higher than laser/plasma due to abrasive consumption ($15-30/hour is pure consumable cost). However, waterjet's universal material capability and zero HAZ justify the premium for specialty applications. Choose based on primary material (70%+ of work) and outsource secondary processes for optimal economics.
4. Real-World Case Studies
Case Study 1: Sheet Metal Fabricator (Chose 6kW Fiber Laser)
Background: Mid-size shop processing 70% mild steel (1-6mm), 25% stainless (1-4mm), 5% aluminum (1-3mm). Currently outsourcing laser cutting at $2.50-4.00/part, 500 parts/week.
Evaluation: Considered 6kW fiber laser ($150,000), 200A HD plasma ($55,000), and abrasive waterjet ($120,000).
Analysis:
- • Laser: Superior precision (±0.1mm vs ±0.3mm plasma), 3x faster than waterjet, narrow kerf (saves 8-12% material), excellent edge quality (no grinding)
- • Plasma: Lower upfront cost but ±0.3mm precision insufficient for 40% of parts, wider kerf increases material cost, rough edges require $15-30 grinding labor/part
- • Waterjet: Excellent for aluminum but 5-8x slower than laser on steel (primary material), 2-3x operating cost, moisture creates rust issues
Decision: 6kW fiber laser. Despite highest initial cost, laser delivers: (1) In-house cutting saves $1.25-2.50/part outsourcing markup × 500 parts/week = $32,500-65,000/year, (2) Material savings from narrow kerf = $8,000-12,000/year, (3) Zero grinding labor = $15,000-25,000/year, (4) Faster turnaround enables 20% more orders = $40,000+ revenue/year.
ROI: 18-month payback. After 3 years, cumulative savings $200,000+ vs plasma, $280,000+ vs waterjet.
Case Study 2: Structural Steel Fabricator (Chose 200A Plasma)
Background: Heavy fabrication shop cutting 15-50mm structural steel plates for construction, mining equipment, pressure vessels. 80% carbon steel, 20% stainless. Tolerance ±1mm acceptable, edge quality secondary (welded applications). 200 tons/month material volume.
Evaluation: Considered 12kW fiber laser ($280,000), 200A plasma ($45,000), underwater plasma ($85,000).
Analysis:
- • Laser: Excellent precision but overkill for ±1mm tolerance requirement, 12kW cuts 25mm at 0.8 m/min vs plasma 2.5 m/min (3x slower), operating cost $25-35/hr vs plasma $12-18/hr, $280K investment hard to justify for tolerance-insensitive work
- • Conventional Plasma: ±0.5mm precision meets requirements, 3x faster on thick plate, consumables inexpensive ($3-8/hr), rough edges acceptable (ground or welded), $45K investment recoverable in 1 year
- • Waterjet: Can't compete on speed (10x slower than plasma), abrasive cost $25-40/hr prohibitive at 200-ton volume, moisture incompatible with outdoor steel storage
Decision: 200A plasma with underwater table (fume control, $65,000 total). Plasma's thick-plate speed advantage decisive: cutting 200 tons/month steel at 3x laser speed = 130 hours/month saved at $100/hr burdened rate = $156,000/year labor savings. Lower precision/edge quality immaterial for welded assemblies. Operating cost advantage ($12-18/hr vs $25-35/hr laser) adds $15,000-25,000/year savings.
ROI: 5-month payback. Annual savings vs laser: $140,000 (capex amortization) + $156,000 (labor) + $20,000 (operating) = $316,000/year.
Case Study 3: Aerospace Subcontractor (Chose Waterjet)
Background: Precision shop cutting titanium alloys (Ti-6Al-4V), aluminum honeycomb composites, carbon fiber panels, and Inconel for aerospace applications. Material mix: 40% titanium, 30% composites, 20% aluminum, 10% Inconel. Tolerances ±0.15mm, zero HAZ required (heat treatment concerns), edge quality critical (Class 1, no post-machining budget).
Evaluation: Considered 8kW fiber laser ($200,000), HD plasma ($60,000), 5-axis waterjet ($180,000).
Analysis:
- • Laser: Titanium cutting generates HAZ (0.2-0.4mm) altering material properties—unacceptable for aerospace heat-treated parts, composites/carbon fiber combust or delaminate under laser heat, reflective titanium requires 12kW+ power, eliminated
- • Plasma: Arc heat (20,000°C) creates massive HAZ (1-2mm), rough edges require expensive hand-finishing, cannot cut composites (melt/delaminate), utterly incompatible with aerospace specs, eliminated
- • Waterjet: Zero HAZ (cold cutting) preserves material properties critical for aerospace, cuts all materials universally (titanium, composites, aluminum, Inconel), ±0.15mm precision achievable with quality head, edge quality sufficient (Ra 6-10μm), 5-axis capability for complex geometries. High operating cost ($35-50/hr) offset by premium aerospace part pricing ($500-5,000/part vs $50-200 commercial work)
Decision: 5-axis waterjet ($180,000). Only technology meeting aerospace zero-HAZ requirement. High abrasive cost ($25,000-40,000/year) negligible vs part value. Slow speed non-issue given low-volume/high-mix production (10-50 parts/run). Alternative of outsourcing waterjet cutting costs $3,000-6,000/month ($36,000-72,000/year) with 2-week lead times—in-house waterjet pays for itself in 30-36 months while enabling 1-week faster delivery (competitive advantage worth $100,000+/year in additional orders).
ROI: 30-month payback including all costs. After 5 years, cumulative savings $150,000+ vs outsourcing, plus $500,000+ revenue from faster delivery enabling 15-20% more orders.
Case Study 4: Job Shop (Chose Laser + Plasma Combination)
Background: Diversified job shop serving multiple industries. Material mix: 40% thin-medium steel/stainless (1-10mm), 35% thick steel (10-40mm), 15% aluminum, 10% other (brass, copper, exotic alloys). Customer base values fast turnaround and one-stop service (precision AND heavy cutting).
Challenge: No single technology optimal. Laser excels on precision thin work but slow/expensive on thick plate. Plasma dominates thick plate but inadequate precision for 40% of work. Waterjet too slow/expensive for production volumes. Outsourcing thick work loses $80,000/year margin and causes 3-5 day delays.
Decision: Dual investment: 3kW fiber laser ($110,000) + 200A plasma ($35,000) = $145,000 total. Strategy: Laser handles 1-10mm precision work (±0.1mm, smooth edges, 40% of volume). Plasma tackles 10-40mm thick plate (±0.5mm acceptable, 35% of volume). Aluminum 1-8mm on laser (challenging but manageable with 3kW), thicker aluminum outsourced (15% of volume, low frequency). Exotic alloys outsourced (10%, specialty work).
Financial Analysis:
- • Dual system covers 75% of work in-house vs 40% (laser only) or 35% (plasma only)
- • Revenue capture: In-house cutting saves $2-4/part outsourcing markup on 60% more volume = $65,000-95,000/year increased margin
- • Lead time advantage: 3-5 day faster turnaround = 25-30% more orders = $120,000-180,000/year additional revenue
- • Combined operating cost optimized: laser for precision ($15-20/hr), plasma for speed ($12-15/hr), each technology where it excels
- • Alternative single 6kW laser ($150,000) would handle thin work superbly but struggle on thick plate economics; single HD plasma ($55,000) would handle thick work but lose precision jobs
ROI: 12-month payback for combined system. Dual technology delivers flexibility impossible with single solution, positioning shop as one-stop vendor. Annual profit improvement $150,000-200,000 vs single-technology approach.
5. Decision Matrix and Selection Framework
Technology Selection Decision Tree
Start Here: What is your primary material (70%+ of volume)?
→ Thin-medium metals (1-12mm steel/stainless): Proceed to Laser evaluation
→ Thick metals (15mm+ steel): Proceed to Plasma evaluation
→ Non-metals or composites: Proceed to Waterjet evaluation
→ Mixed materials (no dominant type): Consider combination approach
Laser Selection Criteria: Choose Laser If...
- ✓ Primary materials: Steel, stainless, aluminum 1-20mm (fiber), or non-metals (CO2)
- ✓ Precision requirement: ±0.05-0.15mm tolerances needed
- ✓ Edge quality: Smooth edges required, minimal post-processing budget
- ✓ Production volume: Medium-high volume justifies $100,000-300,000 investment
- ✓ Material utilization: Narrow kerf (0.1-0.3mm) saves 8-12% on expensive materials
- ✓ Automation: Planning lights-out operation or robotic integration
- × Avoid if: Primary work is 20mm+ thick steel (plasma faster/cheaper) or budget limited (<$80,000)
Plasma Selection Criteria: Choose Plasma If...
- ✓ Primary materials: Steel, stainless 10-100mm thickness
- ✓ Speed priority: Need maximum throughput on thick plate (2-3x faster than laser)
- ✓ Tolerance acceptable: ±0.3-0.8mm adequate for your applications
- ✓ Edge finish secondary: Parts will be welded, ground, or machined anyway
- ✓ Budget conscious: $20,000-70,000 investment vs $150,000+ laser
- ✓ Operating cost sensitive: $12-18/hr plasma vs $25-35/hr laser important
- × Avoid if: Precision (<±0.2mm) critical, non-conductive materials, or HAZ unacceptable
Waterjet Selection Criteria: Choose Waterjet If...
- ✓ Universal materials: Need to cut metals + composites + ceramics + glass on one machine
- ✓ Zero HAZ required: Aerospace, medical, heat-sensitive materials
- ✓ Reflective metals: Titanium, copper, brass (laser struggles without high power)
- ✓ Thick materials: Regularly cutting 30-200mm+ thickness
- ✓ Premium pricing: Part values $500-5,000 justify $35-50/hr operating cost
- ✓ Low-volume/high-mix: Speed less critical than capability and quality
- × Avoid if: High-volume production (waterjet 5-10x slower), tight budget (highest operating cost), or fast turnaround critical
Quick Reference: Technology Strengths Summary
🔵 Laser: Precision Champion
- Best at: 1-15mm metals, ±0.1mm precision, smooth edges, complex geometries, automation
- Dominates: Electronics, automotive, precision fabrication, thin-medium sheet metal
- ROI: 12-24 months on medium-high volume precision work
- Investment: $80,000-300,000
🟠 Plasma: Speed & Value Leader
- Best at: 10-100mm steel, high-speed cutting, low operating cost, structural applications
- Dominates: Heavy fabrication, construction equipment, shipbuilding, mining machinery
- ROI: 6-12 months on thick plate volume work
- Investment: $20,000-70,000
🟣 Waterjet: Universal Specialist
- Best at: Any material, zero HAZ, ultra-thick cutting, heat-sensitive applications
- Dominates: Aerospace (titanium/composites), specialty alloys, glass/ceramics, 3D cutting
- ROI: 24-36 months (slower, higher operating cost offset by unique capability premium)
- Investment: $80,000-250,000
