Laser Cutter Installation Requirements

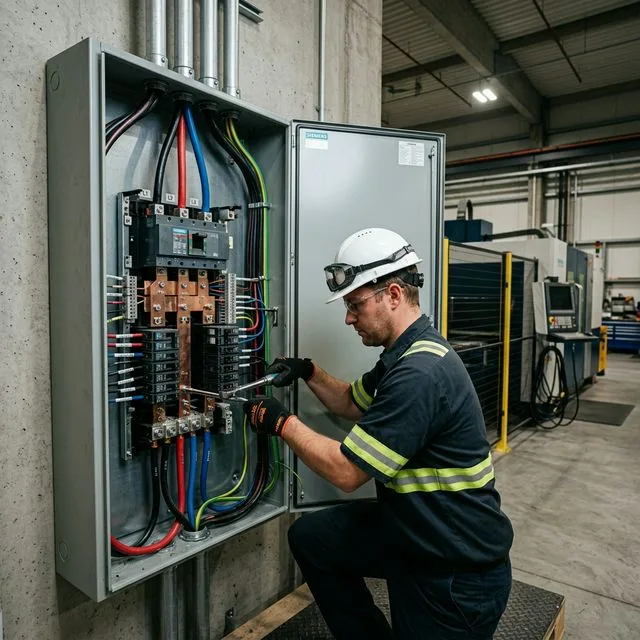

Most fiber laser systems (3-12kW) require 380-480V three-phase power. Typical main breaker sizing: 3kW: 32-40A, 6kW: 50-63A, 12kW: 80-100A. Include 20% headroom for inrush and accessories. Use dedicated circuits with lockable disconnects and surge protection.

• Voltage: 400/415/440/480V 3Φ ±10% (check nameplate)
• Frequency: 50/60 Hz (ensure compatibility across laser, chiller, automation)
• Grounding: Dedicated earth connection, ground resistance < 4Ω recommended
• Cable: Copper, shielded where required, route away from RF noise sources

Cost benchmark: Panel upgrade $5,000-$20,000; wiring and disconnects $2,000-$8,000.

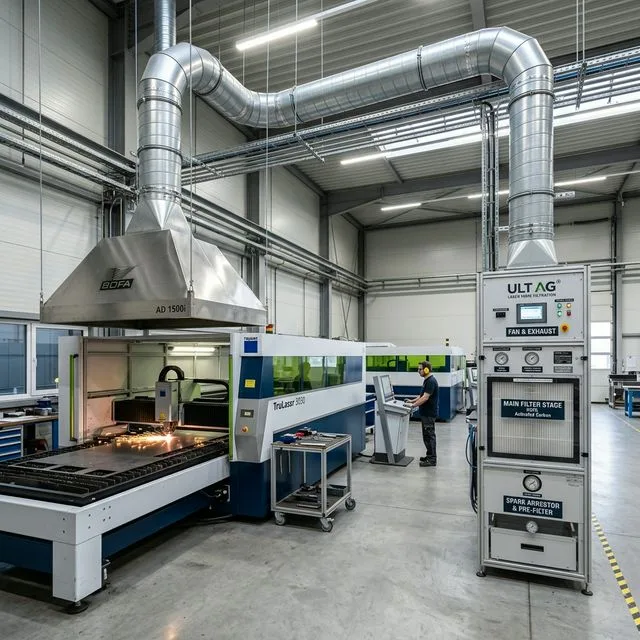

Provide ducted fume extraction sized to table area and cutting throughput. Include spark arrestors, prefilters, HEPA/carbon filtration as required by processed materials. Maintain slightly negative pressure in cutting enclosure to prevent fume escape.

• Airflow: 2,000-6,000 m³/h typical for 1.5×3m tables
• Ducting: Metal duct with minimal elbows; outdoor discharge ≥ 10m from intakes
• Filters: Metal fumes → HEPA; plastics/wood → carbon + HEPA (CO2)
• Noise: Silencers to keep < 80 dB at operator position

Cost benchmark: $5,000-$20,000 depending on filtration and duct length.

Closed-loop industrial chillers maintain laser and cutting head temperatures. Separate loops for source and optics are common. Ambient 18-28°C, relative humidity 40-60% recommended for stability.

• Capacity: 3kW laser → 4-6kW cooling; 12kW laser → 12-18kW cooling
• Water quality: Deionized water with corrosion inhibitors; maintain conductivity spec
• Maintenance: Quarterly filter change; annual coolant replacement and flush

Cost benchmark: $3,000-$12,000 (capacity dependent).

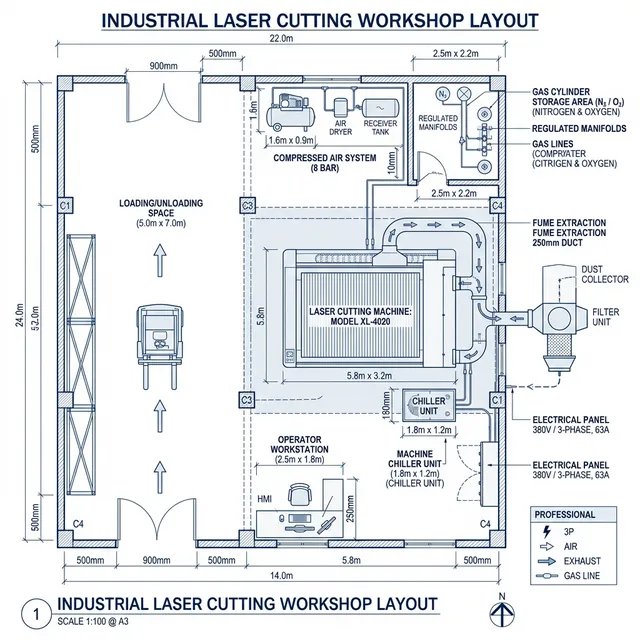

Ensure level concrete floor (flatness ≤ 2mm over 2m) with adequate load capacity (machine + material + pallet changer). Provide service clearance around all sides; verify crane or forklift access for installation.

• Load: 3-8 tons typical; floor bearing ≥ 5 t/m²
• Space: 1.5× table footprint minimum; allow 1m service aisle
• Vibration: Avoid proximity to stamping presses, heavy traffic, or compressors

Cost benchmark: Floor repair/leveling $2,000-$8,000; rigging $3,000-$10,000.

Size nitrogen/oxygen supply for peak cutting demand. Dry, oil-free compressed air for pneumatics (and cutting if using air cutting). Include regulators, dryers, and high-pressure piping per code.

• Nitrogen: 10-22 bar; 50-200 m³/h depending on thickness and nozzle size
• Oxygen: 4-10 bar; flashback arrestors on lines
• Air: 7-10 bar, −20°C dew point; 0.5-1.0 m³/min for pneumatics

Cost benchmark: On-site N2 generator $12,000-$35,000; manifold & piping $2,000-$6,000.

Class 4 laser installation requires interlocked enclosures, warning systems, LSO oversight, SOPs, and documented operator training. Align with IEC 60825-1, ANSI Z136.1 and local codes. Prepare for insurance and safety audits.

• Interlocks on doors; illuminated status beacons; emergency stops at operator positions
• Laser Safety Officer appointed; training records maintained and renewed annually
• Signage at all access points; eyewear rated for wavelength and power

Cost benchmark: $10,000-$25,000 annual safety program and audits (single machine).

• Week 1-2: Site audit, electrical & ventilation design, permits
• Week 3-6: Electrical/ventilation build-out, gas piping, floor prep
• Week 7: Rigging & placement, utility connections
• Week 8: Power-on, alignment, safety validation, trial cuts, operator training

Total typical lead time: 6-8 weeks from contract to production readiness.
