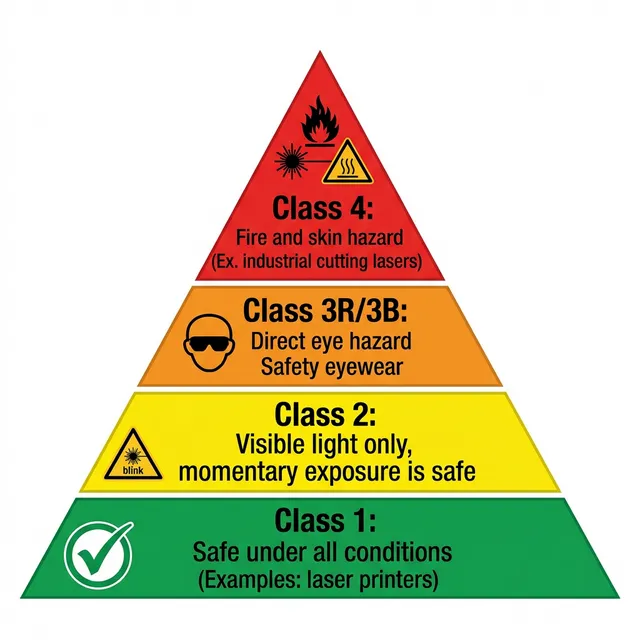

Laser Safety Classes (IEC 60825-1)

Industrial laser cutting systems universally fall into Class 4 - the highest hazard classification. This requires comprehensive safety protocols encompassing engineering controls, administrative procedures, and personal protective equipment. Understanding and implementing these requirements is not just regulatory compliance but essential for protecting personnel and maintaining insurance coverage.

Engineering Controls: Primary Defense

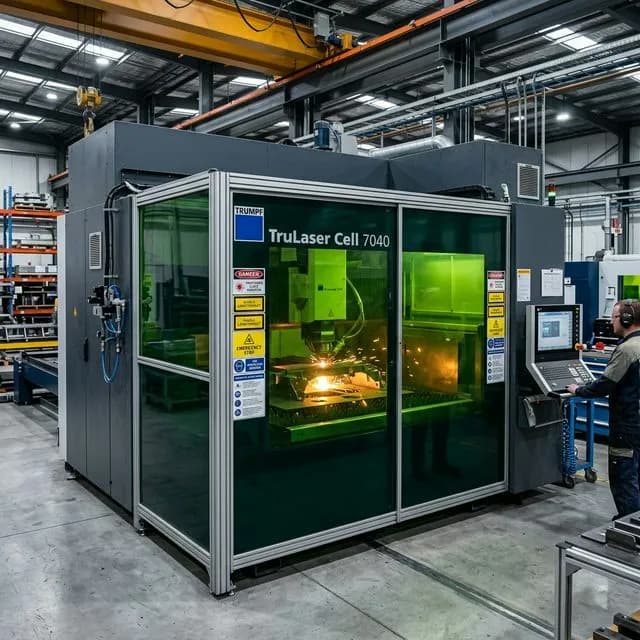

Engineering controls form the first line of defense and are most effective because they eliminate hazards at the source rather than relying on human behavior. For Class 4 lasers, this means complete enclosure of the laser processing area. Modern laser cutting systems incorporate interlocked safety enclosures that automatically shut down the laser when doors are opened, preventing exposure to direct or reflected beams.

Enclosure materials must be rated for the specific wavelength and power level. Fiber lasers (1.06μm) require different protective materials than CO2 lasers (10.6μm). Polycarbonate panels work for CO2 but are transparent to fiber laser wavelengths. Proper enclosures use wavelength-specific absorptive or reflective coatings. Viewing windows must incorporate optical density (OD) filters appropriate for the wavelength and maximum power output.

Administrative Controls and Training

Even with perfect engineering controls, administrative procedures and training are critical. ANSI Z136.1 requires designation of a Laser Safety Officer (LSO) responsible for implementing and monitoring safety programs. The LSO establishes Standard Operating Procedures (SOPs), conducts hazard assessments, and ensures compliance with regulatory requirements.

Operator training must cover: laser hazards and biological effects, proper operation of safety interlocks, emergency procedures, PPE selection and use, and recognition of unsafe conditions. Training should be documented and refreshed annually. New operators require supervised operation periods before independent work authorization.

Personal Protective Equipment Selection

While engineering controls should prevent exposure during normal operation, PPE provides backup protection during maintenance, alignment, or emergency situations. Laser safety eyewear is the most critical PPE component. Eyewear must be rated for the specific wavelength and maximum power level, specified by Optical Density (OD) rating.

For fiber lasers (1.06μm) at typical industrial power levels (3-12kW), minimum OD 5+ eyewear is required for direct beam exposure scenarios. However, most industrial applications involve enclosed systems where eyewear protects against scattered or reflected radiation, allowing lower OD ratings (OD 3-4) for improved visibility. Always consult the laser system's hazard classification and manufacturer recommendations.

Regulatory Compliance and Inspection

Laser safety is regulated at multiple levels: federal (FDA CDRH for manufacturers, OSHA for workplace safety), state (varying requirements), and industry standards (ANSI Z136 series). Facilities must maintain compliance documentation including: laser inventory and classification, hazard assessments, SOPs, training records, incident reports, and periodic safety audits.

Regular safety inspections should verify: interlock functionality, warning signage visibility, PPE availability and condition, enclosure integrity, and operator compliance with SOPs. Many insurance policies require annual third-party safety audits for facilities operating Class 4 lasers. Non-compliance can result in citations, fines, increased insurance premiums, or loss of coverage.

Cost of Safety Compliance

Initial Setup Costs (Class 4 Industrial Laser): Safety enclosure and interlocks (typically included with system or $15,000-$40,000 retrofit), laser safety eyewear ($150-$400 per pair, need 3-5 pairs minimum), warning signage and labels ($200-$500), safety training program development ($2,000-$5,000), initial LSO training and certification ($1,500-$3,000). Total initial investment: $20,000-$50,000 beyond equipment cost.

Annual Ongoing Costs: LSO time allocation (10-20 hours/month = $6,000-$15,000 annually), operator training refreshers ($500-$1,000 per operator annually), PPE replacement ($500-$1,500 annually), third-party safety audits ($2,000-$5,000 annually), interlock testing and maintenance ($1,000-$2,000 annually). Total annual costs: $10,000-$25,000 for typical single-machine facility.

While these costs may seem substantial, they pale in comparison to the cost of a single serious laser injury (medical costs $50,000-$500,000+, OSHA fines $7,000-$70,000 per violation, litigation costs potentially millions, reputation damage immeasurable). Comprehensive safety programs demonstrate due diligence and typically reduce insurance premiums by 10-20%, partially offsetting compliance costs.

Common Safety Violations and How to Avoid Them

Violation #1: Disabled or Bypassed Interlocks - Operators sometimes disable interlocks to "save time" during setup or maintenance. This is the most dangerous and frequently cited violation. Prevention: Implement tamper-evident seals on interlock switches, require two-person authorization for any interlock override, log all interlock events electronically, and establish clear disciplinary policies for violations.

Violation #2: Inadequate or Missing PPE - Eyewear left in lockers, wrong wavelength protection, or damaged eyewear. Prevention: Provide dedicated eyewear storage at each laser station, implement eyewear inspection checklists (check for scratches, cracks, degraded coatings monthly), color-code eyewear by wavelength, and maintain spare sets for visitors and replacements.

Violation #3: Insufficient Training Documentation - Verbal training without records, outdated training materials, no competency verification. Prevention: Implement formal training program with written curriculum, require written tests (80% passing score), document hands-on competency evaluations, maintain training records for duration of employment plus 3 years, and update training materials annually or when procedures change.

Violation #4: Inadequate Warning Signage - Missing signs, faded signs, signs in wrong locations, or incorrect hazard classification. Prevention: Use durable, UV-resistant signage materials, install signs at all entry points to laser areas, include illuminated warning lights that activate when laser is operational, and audit signage quarterly for visibility and accuracy.

Emergency Response Procedures

Every facility must have documented emergency procedures for laser incidents. For eye exposure:Immediately cease laser operation, do not rub eyes, flush with clean water if contamination present, cover both eyes with clean cloth, seek immediate medical attention from ophthalmologist familiar with laser injuries (pre-identify and post contact information), and document incident details while fresh.

For fire incidents: Class 4 lasers can ignite combustible materials. Activate fire alarm, evacuate personnel, use appropriate fire extinguisher (ABC rated for most materials, DO NOT use water on metal fires), shut down laser power at main disconnect if safe to do so, and notify fire department (inform them of laser hazard and high-voltage electrical equipment).

Post-incident requirements: All laser incidents (injuries, near-misses, equipment failures) must be investigated and documented. Root cause analysis should identify contributing factors (equipment failure, procedural gaps, training deficiencies, environmental factors). Implement corrective actions and communicate lessons learned to all personnel. OSHA requires reporting of serious injuries (hospitalization, amputation, loss of eye) within 24 hours.
