Laser Cutting Safety Operations Guide

Class 4 industrial laser cutters must enclose the beam path and work area within protective housing that prevents direct or reflected beam exposure outside the enclosure. Enclosure converts Class 4 laser into Class 1 enclosed system during normal operation—no beam access, minimal hazard. Door opening triggers interlock, immediately disabling laser.

• • Non-reflective surfaces: Matte black or anodized finishes prevent specular reflections that could defeat protective intent
• • Fire-resistant materials: Sheet metal (16-20 gauge steel/aluminum), fire-rated composites, no combustible plastics near beam path
• • Structural integrity: Rigid construction withstands impact, vibration, prevents panel gaps that leak scattered radiation
• • Optical density adequate for wavelength: Solid metal provides OD 20+ at all wavelengths; transparent panels require filtered glass

Observation windows use filter glass with OD 5+ at laser wavelength (1064nm fiber / 10600nm CO₂), visible light transmission 10-30% for clear viewing. Windows labeled with wavelength and OD rating, securely mounted in frames preventing bypass. Polycarbonate overlays protect filter glass from spatter/impact. Window size minimized—larger windows = greater scattered radiation leakage risk.

Minimize number of access points (doors, material loading ports) to reduce interlock complexity and failure points. Each access point interlocked per Section 6.2. Material loading/unloading designed with baffles or tortuous path preventing direct beam line-of-sight to exterior. Manual overrides prohibited—interlocks must be fail-safe (power loss = laser disabled).

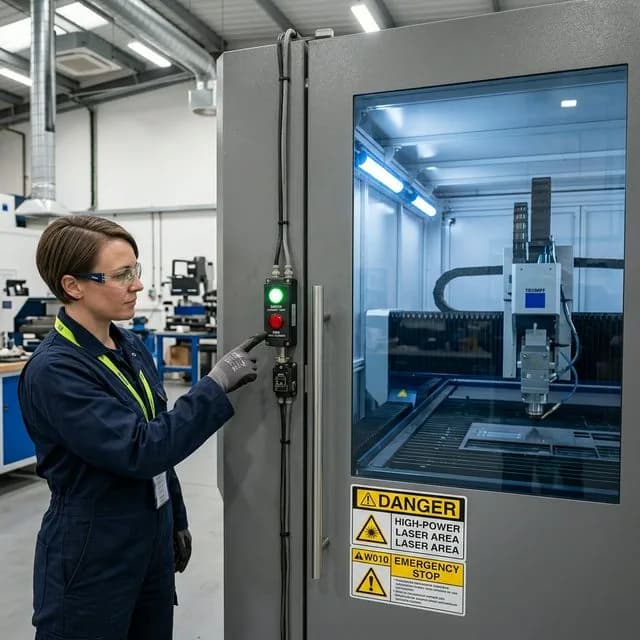

Safety-rated interlock switches on all access doors/panels detect open condition and disable laser beam immediately. Category 3 = redundant sensors with diagnostic monitoring—single fault does not cause loss of safety function. Interlock circuit directly controls laser enable signal and beam shutter, independent of CNC control software (software cannot bypass). Defeating interlocks is federal violation (FDA 21 CFR 1040.10) and OSHA serious violation ($7,000-14,000 citation).

Master key switch enables/disables laser system, preventing unauthorized operation. Key removable only in OFF position. Limited key distribution (supervisor + authorized operators only), key control log tracks issuance. Key switch directly wired into laser enable circuit—software cannot override. Lost key protocol: rekey switch immediately, update key control log.

Electromechanical shutter physically blocks laser beam path when closed, providing redundant protection beyond electronic laser disable. Fail-safe design: spring-loaded to closed position, requires continuous power to hold open—power loss automatically closes shutter. Response time <0.1 seconds from trigger to full closed. Shutter construction: heat-resistant metal (copper, aluminum) with water cooling for high-power lasers (6kW+). Position sensors (open/closed) with indicator lights, status monitored by safety PLC.

Open-frame or gantry-style systems without full enclosure use active optoelectronic protective devices (AOPDs / light curtains) to detect operator presence in hazard zone. Safety Category 4 = redundant sensors, diagnostic monitoring, fault tolerance—single fault + single undetected fault does not cause loss of safety. Beam spacing 14-30mm, response time <20ms, coverage height adjusted for application. Intrusion immediately triggers emergency stop. Annual validation testing required per OSHA 1910.212.

Required extraction airflow = Work area volume (m³) × 60 air changes per hour ÷ 60 minutes = CFM minimum. Example: 2m × 1.5m × 0.8m enclosure = 2.4 m³ × 60 / 60 = 2.4 m³/min = 85 CFM minimum. Industrial practice: multiply by 1.5-2.0 safety factor for high fume generation (thick materials, high speeds). Typical range: 350-1,500 CFM per machine depending on work area size and application.

• • Pre-filter (G4 / MERV 8): Captures large particulates (>10 μm), extends HEPA life, washable/reusable, replace every 3-6 months
• • HEPA filter (H13 / 99.95% at 0.3 μm): Captures metal oxide fumes, fine particulates down to submicron, replace annually or at 80% capacity
• • Activated carbon filter (gas/odor removal): Adsorbs organic vapors, acid gases from plastics/coatings, replace every 6-12 months based on usage

System operates under negative pressure (enclosure at -0.5 to -2.0 inches water column) preventing fume escape. Ductwork: rigid metal (galvanized steel, stainless for corrosive fumes), smooth interior minimizes turbulence, 10-20 cm (4-8 inch) diameter typical. Explosion-proof fans required for combustible dust atmospheres (aluminum, magnesium cutting). Discharge outdoors away from building intakes, at roof height preventing re-entrainment.

Magnehelic pressure differential gauge measures extraction vacuum continuously. Set alarm threshold at 75% of normal operating pressure (e.g., normal -1.5" WC, alarm at -1.1" WC). Audio/visual alarm alerts operator to insufficient extraction (clogged filter, fan failure, duct blockage). Interlock extraction monitoring with laser enable—laser cannot operate if extraction inadequate. Airflow switches ($50-150) provide objective go/no-go indication vs. subjective operator judgment.

High-value or high-risk installations use automatic fire suppression systems inside laser enclosure. Clean agent systems (FM-200, Novec 1230) suppress fires without water damage to electronics/optics. Activation: heat/smoke detectors trigger agent discharge, simultaneously shutting down laser and assist gas. System cost $5,000-15,000 vs. potential $100,000-500,000 fire damage. NFPA 2001 compliant design, annual inspection required.

Smoke detectors (photoelectric or ionization) and heat detectors (rate-of-rise or fixed temperature 70-80°C) mounted inside enclosure near work area. Detection triggers: (1) Immediate laser shutdown via safety PLC, (2) Beam shutter close, (3) Assist gas cutoff (oxygen accelerates fires), (4) Audible/visual alarm, (5) Optional: automatic fire suppression system activation. Interconnected with facility fire alarm system per NFPA 72.

Class ABC (dry chemical) or Class BC (CO₂) fire extinguisher within 3 meters (10 feet) of laser equipment, minimum 5 lb capacity (2.5 kg). CO₂ preferred for electrical/electronics fires—leaves no residue damaging optics. Mount at 1.2-1.5 meter height (4-5 feet), clearly marked, unobstructed access. Annual inspection by certified technician, monthly visual checks by operator. Training: all operators demonstrate extinguisher use during initial training + annual refresher.

Maintain 1-meter (3-foot) minimum clearance around laser equipment, free of combustible materials (paper, cardboard, wood, plastics, flammable liquids, aerosols). Raw material storage: non-combustible racks, segregated from cutting area. Scrap/waste removal: metal bins with lids, empty daily (accumulated metal dust = fire/explosion hazard). Housekeeping standard: daily cleaning of spatter/dust prevents accumulation reaching ignition threshold.

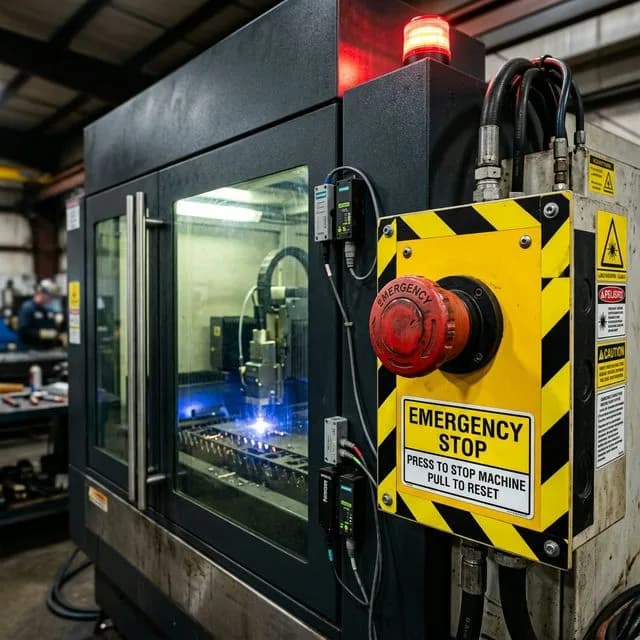

Minimum 2 emergency stop buttons per machine, maximum 2-meter reach from any operator position. E-stop design: red mushroom head (40mm diameter minimum), yellow background, push-pull or twist-to-reset mechanism. Labeled "EMERGENCY STOP" in English + pictogram. Category 0 stop per IEC 60204-1: immediate removal of power to actuators causing hazardous motion—uncontrolled stop prioritizing speed over damage prevention.

Pressing E-stop triggers instantaneous actions: (1) Laser beam disable via interlock circuit + software command (redundant), (2) Beam shutter mechanical closure, (3) Motion axes emergency brake (deceleration 2-5G), (4) Assist gas flow cutoff, (5) Audible alarm activation, (6) Visual indicator (flashing red light). Response time: <100 milliseconds from button press to laser disabled. E-stop circuit hardwired through safety relay module, independent of main PLC—software crash cannot prevent E-stop function.

E-stop reset requires deliberate action: operator rotates/pulls button to release, inspects equipment for damage, identifies and resolves cause of E-stop activation. Supervisor or LSO approval may be required for reset after incident-related E-stop. Document E-stop events in operator logbook: date/time, reason for activation, inspection findings, corrective action, operator signature. Frequent E-stops may indicate operator training deficiency, procedural issues, or equipment malfunction requiring investigation.

• • Bachelor's degree in engineering, physics, industrial hygiene, or related technical field, OR
• • 5+ years direct laser industry experience with demonstrated safety knowledge, OR
• • Equivalent combination of education and experience as approved by management

LSO must understand laser physics, beam characteristics, biological effects, hazard evaluation, and control measures at technical level enabling independent decision-making.

• • Laser Institute of America (LIA) Certified Laser Safety Officer: Industry-recognized certification requiring 24+ hour comprehensive course + exam. Covers ANSI Z136 series standards, hazard calculations, control selection, medical surveillance, regulatory compliance. Cost: $1,500-2,500, 3-year recertification cycle.
• • Alternative certifications: Board of Laser Safety (BLS) Certified Laser Safety Officer, International Laser Safety Conference (ILSC) completion, university-based laser safety programs (Rochester, Stanford, etc.).
• • Continuing education: 8+ hours annually through conferences (ILSC), webinars, technical publications. Stay current with standard updates (ANSI Z136 revised every 5 years), new technology, incident case studies.

LSO must have direct shutdown authority for unsafe laser operations—no management approval required to stop work presenting imminent danger. Reports to senior management independently from production/operations, preventing conflicts of interest where production pressure overrides safety. Access to all laser areas without restriction. Authority to deny laser operation authorization to unqualified personnel. Budget authority for safety equipment, training, and consulting services.

Evaluate all laser systems upon installation, modification, or procedural changes. Classify lasers per IEC 60825-1 / ANSI Z136.1 (Class 1-4). Calculate Nominal Hazard Zone (NHZ) for open beam applications using beam divergence, power, and Maximum Permissible Exposure (MPE) formulas. Select and specify engineering controls (enclosures, interlocks, extraction), administrative controls (SOPs, access restrictions), and PPE appropriate for hazard level. Document hazard evaluation with calculations, rationale for control selection, and residual risk assessment.

Create laser-specific SOPs per ANSI Z136.1 Section 4.3 for each laser system or class of similar systems. SOP content: equipment description, hazards, safety controls, authorized users, operating procedures (startup, operation, shutdown), emergency response, maintenance requirements, training prerequisites. Review SOPs annually or when equipment/procedures change. Approve all SOP revisions—no procedural changes without LSO review. Maintain version control and operator acknowledgment signatures.

Design comprehensive training curriculum covering laser hazards, safety controls, PPE, SOPs, emergency response, regulatory compliance. Deliver or oversee initial training (8-16 hours) and annual refresher (4 hours minimum). Develop competency assessments: written exams (50+ questions, 80% pass rate), practical demonstrations, emergency scenario simulations. Maintain training records per OSHA requirements (3+ years). De-authorize operators failing competency assessments or demonstrating unsafe practices.

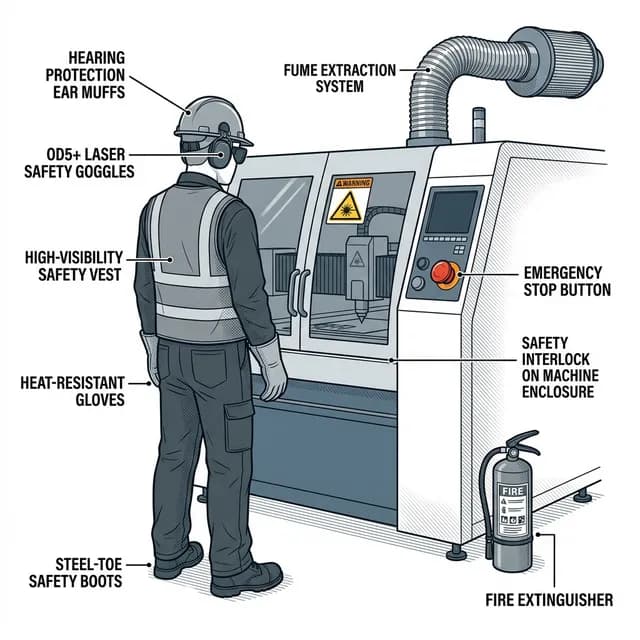

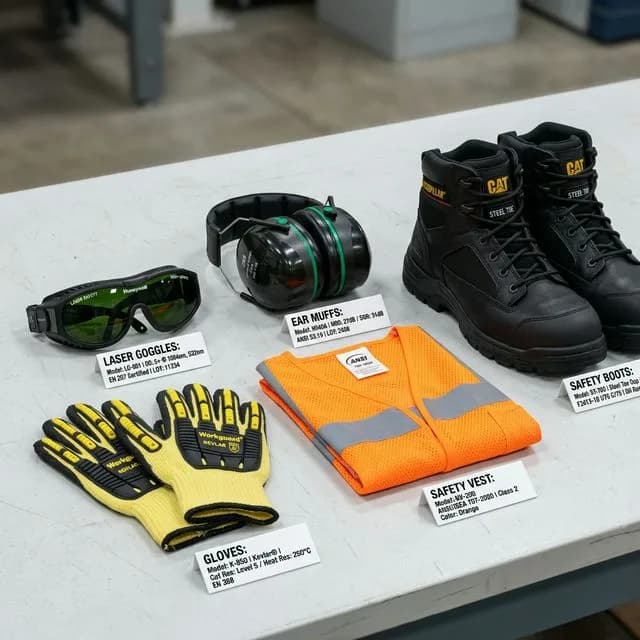

Specify personal protective equipment based on hazard evaluation: laser safety eyewear (wavelength, OD rating, VLT), respiratory protection (filter type, fit testing requirements), protective clothing (FR rating). Approve all PPE purchases—verify compliance with ANSI Z87.1 (eyewear), ANSI Z136.1, NIOSH approvals (respirators). Maintain PPE inventory and replacement schedule. Conduct respirator fit testing per OSHA 1910.134 or designate qualified fit tester.

Investigate all laser safety incidents (injuries, near-misses, equipment failures, procedural violations) within 24 hours. Conduct root cause analysis using systematic methods (5-Whys, Fishbone diagram, Fault Tree Analysis). Identify immediate causes (unsafe act/condition) and systemic root causes (training deficiency, procedural gap, equipment design flaw). Develop and implement corrective actions: engineering improvements, procedural revisions, retraining, disciplinary measures. Verify effectiveness of corrective actions through follow-up audits. Report findings to management with recommendations.

Conduct annual comprehensive safety audits evaluating compliance with OSHA 1910 (machinery, respiratory, lockout/tagout, hazard communication), ANSI Z136.1 (hazard controls, training, signage, medical surveillance), FDA 21 CFR 1040.10 (equipment labeling, interlocks), and applicable state regulations. Audit checklist: 50-100 items covering equipment condition, documentation completeness, training currency, PPE availability, signage, emergency equipment. Document findings with photographic evidence. Assign corrective actions with deadlines and responsible parties. Track closure of audit findings. Prepare summary report for senior management.

Design and specify all laser safety signage per ANSI Z136.1 Section 8 and FDA requirements: laser warning signs at controlled area entrances (Class designation, wavelength, max power), equipment labels (certification, operation warnings), PPE requirement signs, emergency contact information. Maintain sign inventory and replacement schedule. Conduct quarterly inspections verifying signs are visible, legible, and accurately reflect current equipment/procedures. Update signage when equipment modified or procedures change.

Review and approve contractor work involving laser systems (installation, service, modification). Provide pre-work safety briefings covering facility-specific hazards, procedures, emergency response. Verify contractor personnel qualifications and training. Monitor contractor work activities for compliance with safety requirements. Investigate any contractor-involved incidents. Approve laser equipment purchases—review manufacturer safety features, documentation, and regulatory compliance before purchase authorization.

Prepare comprehensive annual report summarizing laser safety program status: incident statistics, training completion rates, audit findings and closure status, equipment inventory changes, regulatory updates, program costs, recommendations for improvement. Present report to senior management with budget requests for safety improvements. Report demonstrates due diligence and provides documentation for insurance, regulatory inspections, and legal defense if incidents occur.

Maintain comprehensive database of all laser systems: manufacturer, model, serial number, classification (IEC/ANSI), wavelength, maximum power, installation date, location, responsible operator/supervisor, last inspection date, next service due date, incident history. Update immediately when equipment added, removed, moved, or modified. Spreadsheet minimum acceptable; specialized software (LaserBase, SafetyDB) preferred for large facilities (10+ lasers).

Document all laser safety training activities: trainee name/ID, training date/duration, course content/modules, trainer name/qualifications, assessment results (written exam score, practical pass/fail), certification expiration date. Maintain records 3+ years per OSHA 1910.1020, lifetime recommended for legal protection. Digital training management systems provide automated tracking, expiration alerts, and audit-ready reports.

Log all laser safety incidents and near-misses: date/time, location, personnel involved, incident description, injuries sustained, immediate response, notification made. Complete investigation reports include root cause analysis, corrective actions, responsible parties, completion deadlines, verification of effectiveness. Maintain 30 years per OSHA 300 Log requirements for recordable injuries. Near-miss investigations provide opportunity to prevent future incidents—investigate all near-misses as if actual injury occurred.

Document daily operator inspections, weekly/monthly/annual maintenance, quarterly signage inspections, annual comprehensive safety audits. Include inspection date, inspector name, checklist items completed, findings/deficiencies, corrective actions taken, follow-up verification. Retain 5+ years demonstrating continuous compliance and due diligence. Gap in inspection records = presumption of non-compliance in legal/regulatory proceedings.

Maintain current and superseded versions of all Standard Operating Procedures. Track revision history: version number/date, changes made, LSO approval signature, operator acknowledgment signatures (all affected operators sign off on revised procedures). Retain superseded versions 3+ years demonstrating procedural evolution and compliance at time of historical incidents.

Track PPE inventory and issuance: item type/specification, purchase date, issue date, assigned operator, inspection/replacement due dates, damage reports. Laser safety eyewear: track OD rating, wavelength protection, operator assignment (personalized fit). Respirators: track fit test dates (annual requirement), medical clearance status, cartridge replacement dates. Replace damaged PPE immediately—maintain spare inventory preventing delays.

• • Equipment labeling complete & accurate (Class, wavelength, power, FDA certification)
• • SOPs current, accessible at workstations, operator acknowledgments signed
• • Training records complete: initial + annual refresher, competency assessments, certifications current
• • PPE available, proper specifications, good condition, replacement schedules maintained
• • Engineering controls functional: interlocks, e-stops, extraction, fire suppression tested
• • Maintenance records complete: daily/weekly/monthly/annual documentation, corrective actions closed
• • Incident reports filed, investigations complete, corrective actions implemented and verified
• • Authorized user list current, de-authorization of expired certifications
• • Emergency equipment functional: fire extinguishers inspected, eye wash tested, first aid stocked
• • Safety zone markings visible, signage accurate, emergency contact information posted

OSHA inspections triggered by employee complaint, injury/fatality, or programmed inspection. Upon inspector arrival: designate management spokesperson (HR director, safety manager, LSO), request inspection warrant if desired (constitutional right, delays entry 1-4 hours), accompany inspector throughout facility taking parallel photos/notes. Provide requested documents promptly: training records, maintenance logs, SOPs, injury records. Do not volunteer information beyond questions asked. If violations identified: respond to citations within 15 working days (contest or abate), negotiate settlement before informal conference deadline. Legal representation recommended for serious/willful citations or contested cases.

Comprehensive safety program reduces insurance premiums 10-30% (general liability, workers' compensation). Insurers audit safety programs annually—incomplete documentation may void coverage for incidents. If incident occurs: notify insurer immediately (24-48 hours), preserve evidence, document thoroughly, do not admit fault. Safety program documentation provides strong legal defense: "we implemented industry standard controls per ANSI Z136.1, designated qualified LSO, provided comprehensive training—incident resulted from unforeseeable equipment failure/operator error despite reasonable precautions." Absence of safety program = presumption of negligence in litigation.
