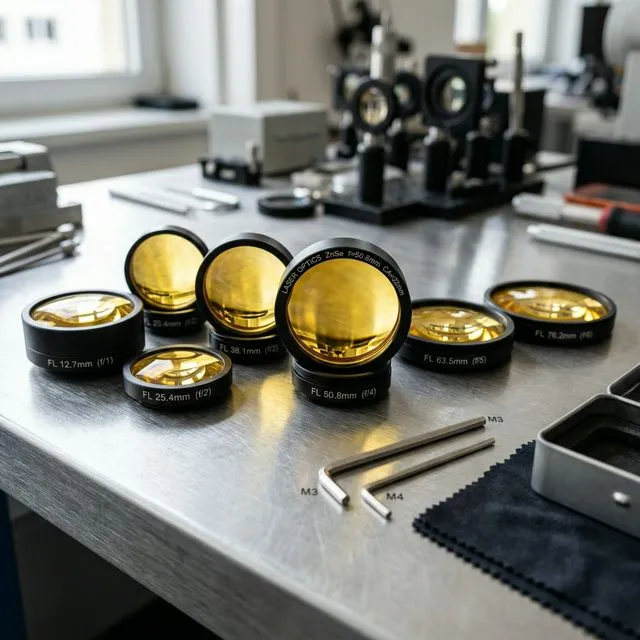

Laser Focusing Lens Specifications
Select the optimal focusing lens for your laser cutting application. Compare focal lengths from 50mm to 254mm with detailed specifications, advantages, and recommended uses.
Select focal length by thickness range, required spot size, depth of focus, and collision clearance. After choosing a lens, validate focus position and power density before blaming speed, gas pressure, or nozzle size for edge-quality problems.
Understanding focal length is crucial for optimizing spot size and depth of focus.
Understanding Focal Length
The focusing lens focal length is one of the most critical parameters in laser cutting. It determines the spot size, depth of focus, and working distance - all of which directly affect cutting quality, material thickness capability, and operational ease.
Spot Size
Shorter focal length = smaller spot = higher power density = better precision. 50mm lens produces 0.05mm spot vs 254mm producing 0.35mm spot.
Depth of Focus
Longer focal length = larger depth of focus = more tolerant to height variations. Critical for thick materials and warped sheets.
Working Distance
Longer focal length = more clearance between lens and workpiece. Important for 3D cutting and preventing collisions.
Quick Selection Guide
50-75mm
Precision Cutting
• Thin materials (0.5-3mm)
• High precision required
• Electronics, jewelry
• Fine details
127mm
Universal Standard
• Medium materials (3-15mm)
• Most versatile
• General fabrication
• Best all-around choice
190mm
Thick Plate
• Thick materials (15-25mm)
• Large depth of focus
• Heavy fabrication
• Structural steel
254mm
Special Applications
• Ultra-thick (>25mm)
• 3D tube cutting
• Remote processing
• Deep engraving
Focal Length Comparison
Select lenses to compare their specifications
50mm (2 inch)
Precision cutting of thin materials
Spot: 0.05-0.08mmDOF: ±0.5mm
Metal Thickness:1-3mm
Power Density:Very High (>5 MW/mm²)
Working Distance:~40-45mm
Applications:
• Electronic components (PCB)
• Precision mechanical parts
+4 more
View details
75mm (3 inch)
Thin to medium thickness with good precision
Spot: 0.08-0.12mmDOF: ±0.8mm
Metal Thickness:3-6mm
Power Density:High (3-5 MW/mm²)
Working Distance:~65-70mm
Applications:
• Sheet metal fabrication
• Signage and branding
+4 more
View details
127mm (5 inch)
Universal cutting - most common choice
Spot: 0.12-0.18mmDOF: ±1.5mm
Metal Thickness:6-15mm
Power Density:Medium-High (2-3 MW/mm²)
Working Distance:~110-120mm
Applications:
• General sheet metal work
• Mechanical parts fabrication
+4 more
View details
190mm (7.5 inch)
Thick plate cutting and deep engraving
Spot: 0.18-0.25mmDOF: ±2.5mm
Metal Thickness:15-25mm
Power Density:Medium (1-2 MW/mm²)
Working Distance:~170-180mm
Applications:
• Thick steel plate (15-25mm)
• Heavy machinery parts
+4 more
View details
254mm (10 inch)
Ultra-thick materials and special applications
Spot: 0.25-0.35mmDOF: ±3.5mm
Metal Thickness:25mm+
Power Density:Low (<1 MW/mm²)
Working Distance:~230-240mm
Applications:
• Extremely thick steel (>25mm)
• 3D laser cutting (tube/pipe)
+3 more
View details
Lens Materials by Wavelength
ZnSe (Zinc Selenide)
10600nm (CO2 Laser)
medium costmedium durability
Transmittance: ≥99.5%
Standard material for CO2 lasers. Good transmission, but requires regular cleaning due to coating sensitivity. Susceptible to thermal shock.
Fused Silica (Quartz)
1064nm (Fiber/Nd:YAG)
low costhigh durability
Transmittance: ≥99%
Standard for fiber lasers. Excellent durability, resistant to thermal shock. Most cost-effective option for near-IR wavelengths.
BK7 Glass
532-1064nm (Visible/Near-IR)
low costmedium durability
Transmittance: ≥98%
Economic option for lower power applications. Good optical quality but lower damage threshold than fused silica.
Sapphire (Al₂O₃)
Multiple wavelengths
high costhigh durability
Transmittance: ≥95%
Extremely durable, resistant to scratches. Used in harsh environments. Higher cost limits use to special applications.
Calcium Fluoride (CaF₂)
193-7000nm (UV-IR)
high costmedium durability
Transmittance: ≥95%
Excellent for UV lasers. Low absorption across wide spectrum. Hygroscopic - requires special handling.
Fused Silica (UV Grade)
355nm (UV Laser)
high costhigh durability
Transmittance: ≥90%
Special UV-grade material for UV lasers. High purity required. Must be kept clean to prevent UV damage.
Lens Maintenance Guidelines
Cleaning Frequency
Light Use:Monthly
Normal Use:Weekly
Heavy Use:Daily or every shift
Cleaning Method
#1Use lint-free optical cleaning tissue or cotton swabs
#2Apply optical cleaning solution (isopropyl alcohol or acetone)
#3Wipe from center outward in circular motion
#4Never touch lens surface with fingers
#5Inspect under bright light for scratches or pits
#6Check coating integrity (no peeling or discoloration)
• Transmittance drop >10% (measured with power meter)
• Cutting quality degradation despite cleaning
• Increased power requirements for same results
• Frequent lens contamination
Storage Guidelines
• Store in protective case when not installed
• Keep in dry environment (use desiccant if needed)
• Avoid temperature extremes (10-30°C optimal)
• Label lenses with date of first use
• Maintain spare lenses for critical production
• Store away from dust and contaminants
Selection Tips & Best Practices
Start with 127mm (5 inch)
If you're unsure, the 127mm focal length is the industry standard for good reason. It handles 80% of common cutting applications and provides the best balance of precision, tolerance, and versatility. Most manufacturers ship equipment with 127mm as default.
Have Multiple Lenses Ready
Keep at least 2-3 focal lengths in stock: one for your primary work (likely 127mm), one for precision jobs (50-75mm), and one for thick materials (190mm). Quick lens changes prevent production delays and optimize quality for each job.
Consider Material Flatness
If you work with warped sheets or materials with height variations >2mm, use longer focal lengths (190mm or 254mm) for their larger depth of focus. Short focal lengths require excellent height control - invest in auto-focus sensors if using 50-75mm lenses.
Match to Your Application
Don't use a 50mm lens for 15mm steel or a 254mm lens for 1mm precision work. Each focal length has a sweet spot - matching your typical material thickness to the right lens can improve quality by 30-50% and reduce reject rates.
Data Disclaimer: This lens specification data is compiled from major optical component manufacturers' catalogs and industry standards, for reference only. Actual performance depends on laser power, material properties, cutting parameters, and lens quality. Always follow lens manufacturer specifications and conduct test cuts. Data last updated: 2025-10-30.
