Best Laser Welding Machines for Manufacturing
Laser welding has moved from aerospace specialty to mainstream manufacturing. Whether you need handheld flexibility or automated production cells, here's what works in real shops.
Quick Recommendations
- Best Handheld: Han's Laser 1.5kW - Good ergonomics, reliable source
- Best for Thin Sheet: IPG LightWELD 1500 - Industry standard
- Best Automated Cell: TRUMPF TruLaser Weld - Premium integration
Laser Welding vs Traditional MIG/TIG
Why consider laser welding? Three reasons:
- Speed: 3-10x faster than TIG on thin materials
- Heat Input: Minimal distortion, smaller HAZ (heat-affected zone)
- Appearance: Often no post-weld grinding needed
The trade-off: Higher equipment cost and tighter fit-up requirements. Laser welding doesn't forgive gaps the way MIG does.

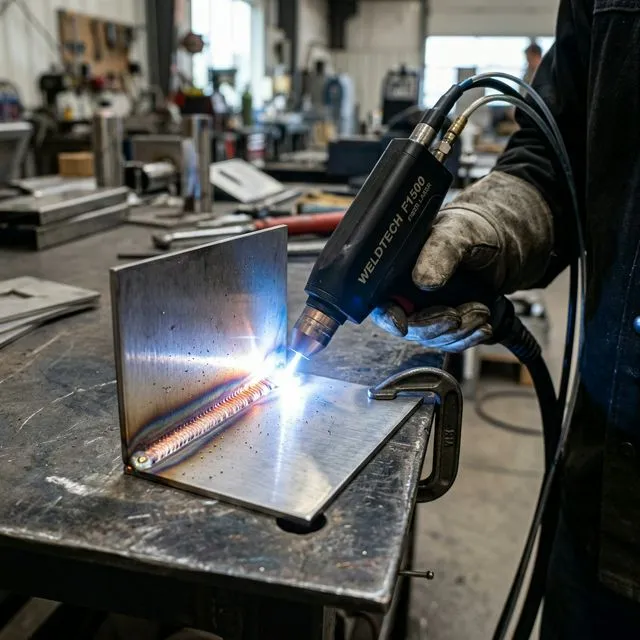

Handheld Laser Welding: The Game Changer
Handheld fiber laser welders have exploded in popularity since 2020. A skilled welder can pick up the technique in a day and be faster than TIG within a week. The capital cost ($15K-40K) puts them in reach of small shops.
Best applications for handheld:
- Stainless steel fabrication (0.5-4mm)
- Sheet metal enclosures
- Repair and maintenance work
- Custom/low-volume production
Available Laser Welding Systems
Automated Laser Welding Cells
For high-volume production, robot-integrated laser welding delivers consistent quality at high speed. Typical applications:
- Automotive body-in-white
- Battery pack assembly
- Medical device manufacturing
- Consumer electronics housings
Expect to invest $150K-500K+ for a turnkey cell with robot, fixturing, and safety enclosure.
Power Selection Guide
| Power | Max Thickness | Application |
|---|---|---|
| 1.0kW | 2mm steel | Light sheet metal, decorative |
| 1.5kW | 3mm steel | General fabrication |
| 2.0kW | 4mm steel | Structural, tubing |
| 3.0kW+ | 6mm+ steel | Heavy fabrication, production |
What to Look For
- ✅ Wobble welding - Improves gap bridging
- ✅ Wire feeding option - For filler material
- ✅ Good extraction system - Laser welding produces fumes
- ✅ Training included - Technique matters
Safety Considerations
Laser welding requires proper eye protection (OD 5+ for fiber wavelengths), fume extraction, and ideally enclosed or screened work areas. Don't skimp on PPE—even handheld systems are Class IV lasers.
