Laser Cutting Process Optimization Guide
Engineering-implementable optimization methods around four key objectives: speed, quality, cost, and utilization
1. Overall Process Optimization Approach
- Speed priority: Maximize throughput while meeting quality requirements
- Quality priority: Optimize parameters with edge quality grade and dimensional accuracy as constraints
- Cost priority: Balance gas, electricity, depreciation and labor costs
Power, speed, focus, gas pressure and nozzle diameter are coupled and require coordinated optimization rather than single-point adjustment. Changing any single parameter affects multiple aspects of the cutting process.
- Baseline testing: Establish standard part parameter baseline with current settings
- Single-factor sweep: Small-range scanning around focus/speed/pressure (±10-20% from baseline)
- Multi-factor combination: Lock candidate combinations for comparative test cuts
- First-article confirmation: Accept according to ISO 9013 quality grade with quantitative measurements
- Database entry: Parameter library with version control and validation date
Parameter Coupling Network
The diagram above illustrates how cutting parameters are interconnected. Strong coupling (thick lines) indicates that changing one parameter requires immediate adjustment of the coupled parameter. For example, increasing cutting speed requires proportional increase in laser power to maintain energy density. Medium and weak couplings show secondary effects that may require fine-tuning during optimization.
Design of Experiments (DOE) Methodology
For complex optimization involving multiple parameters, use factorial design or Taguchi methods to reduce test iterations while identifying optimal combinations:
- Full Factorial: Test all combinations of 2-3 parameters at 2-3 levels each. Example: Power (3kW, 6kW) × Speed (2, 3, 4 m/min) × Focus (-1, 0, +1mm) = 18 test cuts.
- Fractional Factorial: Reduce tests by 50-75% using orthogonal arrays while maintaining statistical validity. Suitable for 4+ parameters.
- One-Factor-at-a-Time (OFAT): Simple but inefficient. Misses interaction effects between parameters. Use only for initial screening.
Best Practice: Start with OFAT to identify parameter ranges, then use factorial design to optimize interactions. Document all test results with photos and measurements for future reference.

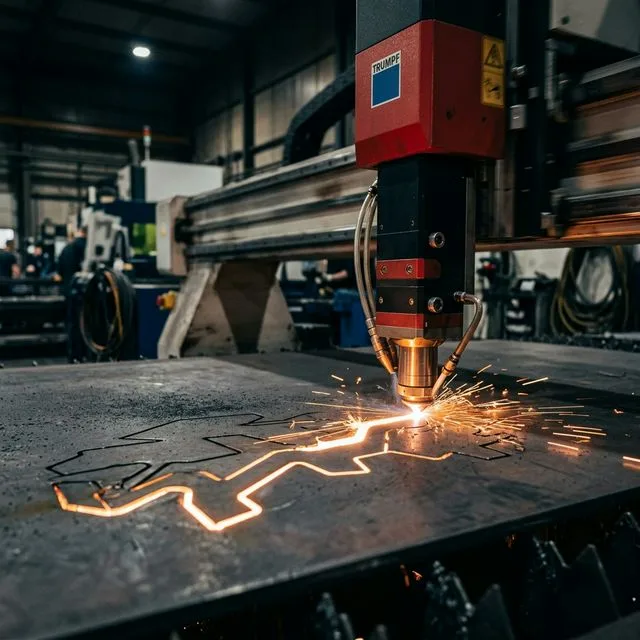

2. Cutting Speed Optimization
Limiting Factors Analysis
Speed Optimization Methods
Speed Optimization Case Studies
3. Cutting Quality Optimization
Quality Grades & Evaluation
- Grade 1: Precision work, Ra ≤6.3μm, u ≤0.3mm, no dross
- Grade 2: General fabrication, Ra ≤10μm, u ≤0.5mm, minimal dross
- Grade 3: Structural work, Ra ≤12.5μm, u ≤0.8mm, removable dross
- Grade 4: Non-critical, Ra ≤20μm, u ≤1.2mm, dross acceptable
Measurement Methodology
Comprehensive Quality Troubleshooting
The interactive table below provides detailed troubleshooting for common quality issues. Click any issue to expand full diagnostic procedures, root causes ranked by likelihood, and solutions with effectiveness ratings.
Burrs on Cut Edge
Dross Formation on Bottom Edge
Non-Perpendicular Cut Surface (Taper)
Rough Edge Surface (Excessive Striations)
Heat-Affected Zone (HAZ) Too Large
Incomplete Penetration (Breakthrough Failure)
4. Material Utilization Optimization

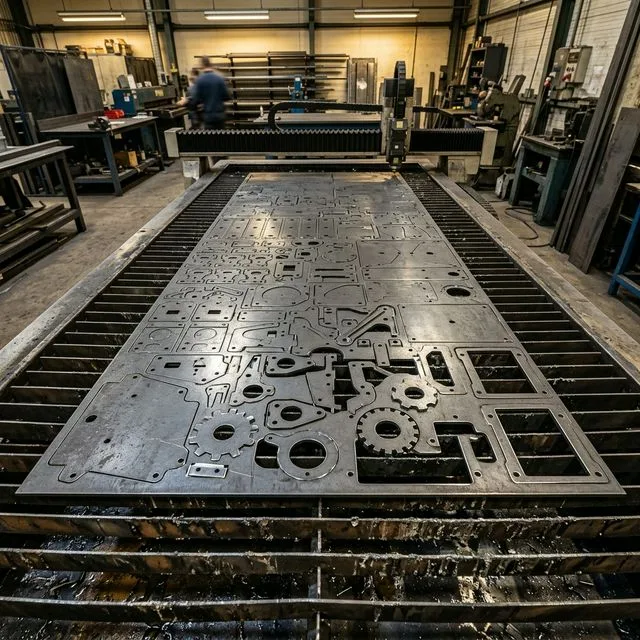

Nesting Strategy
Path Optimization
5. Cost Optimization
Typical cost distribution for medium-thickness steel cutting with nitrogen assist gas. Actual percentages vary by material, thickness, and gas type.
Assist Gas25-50% (typical: 38%)
- Switch from nitrogen to oxygen for mild steel (90-95% gas cost reduction)
- Optimize gas pressure - avoid over-pressurization (each 2 bar excess = 15-20% waste)
- Implement gas flow monitoring and leak detection
- Consider on-site nitrogen generation for high-volume operations (payback 1-3 years)
- Use air assist for non-metals and non-critical applications
Electrical Power18-32% (typical: 24%)
- Maximize cutting speed to reduce cycle time per part
- Minimize idle time - implement job scheduling to reduce laser-on standby
- Use power-saving mode during extended breaks
- Optimize laser power - avoid using more power than necessary for thickness
- Consider time-of-use electricity rates for scheduling production
Consumables (Nozzles, Lenses, Windows)12-22% (typical: 17%)
- Implement preventive maintenance schedule to avoid catastrophic failures
- Optimize pierce strategies - reduce pierce count through common-line cutting
- Use protective film on lenses to extend cleaning intervals
- Track consumable life hours - replace based on data not guesswork
- Train operators on proper nozzle handling to prevent damage
- Maintain clean work environment to reduce lens contamination
Labor (Operator and Programming)8-18% (typical: 12%)
- Invest in CAM/nesting software to reduce programming time by 40-60%
- Standardize parameter libraries - eliminate trial-and-error programming
- Train operators for multi-tasking (operate multiple machines)
- Implement automated loading/unloading for lights-out operation
- Use remote monitoring to reduce operator attendance time
Machine Depreciation6-15% (typical: 9%)
- Maximize machine utilization - aim for 60-80% productive time
- Extend machine life through preventive maintenance
- Consider leasing vs purchasing for tax and cash flow benefits
- Right-size equipment - avoid over-capability for typical jobs
Cost Calculation Formulas
Example: 5 min cutting @ 15 m³/h flow + 20 pierces @ 0.1 m³ each, nitrogen @ $0.50/m³ = (5/60 × 15 × 0.50) + (20 × 0.1 × 0.50) = $0.625 + $1.00 = $1.625/part
Example: 6kW laser, 5 min cutting, 30% efficiency, $0.12/kWh = (6 × 5/60 × 0.30 × 0.12) = $0.018/part
Example: $15 nozzle / 100 hrs + $120 lens / 1000 hrs, 5 min part = ($15/100 + $120/1000) × 5/60 = $0.022/part
6. Specialized Process Optimization
Material-Specific Guidelines
Different materials require significantly different parameter strategies. Select a material below to view comprehensive optimization guidelines including gas requirements, parameter ranges, special considerations, and common challenges.
Mild Steel (Carbon Steel)
Assist Gas Requirements:
Focus Position:
Speed Adjustment:
Baseline speed. Up to 50% faster than nitrogen cutting on same material.
Power Adjustment:
Standard power levels. Exothermic oxygen reaction reduces power requirement by 20-30% vs nitrogen.
Quality Grade Achievable:
ISO 9013 Grade 2-3 typical. Grade 1 difficult due to oxidation layer.
Special Considerations:
- •Oxidation layer on cut edge is normal and acceptable for most applications
- •Oxide layer can be painted or powder coated without removal
- •Exothermic reaction generates additional heat - monitor HAZ on thin materials
- •Lower gas cost compared to nitrogen (typically 90-95% savings)
- •Edge may require deburring for precision assemblies
Common Challenges:
- ⚠Dross formation on bottom edge at high speeds
- ⚠Overburn at sharp corners due to exothermic reaction
- ⚠Oxide layer thickness varies with cutting parameters
- ⚠Material composition variations affect cutting consistency

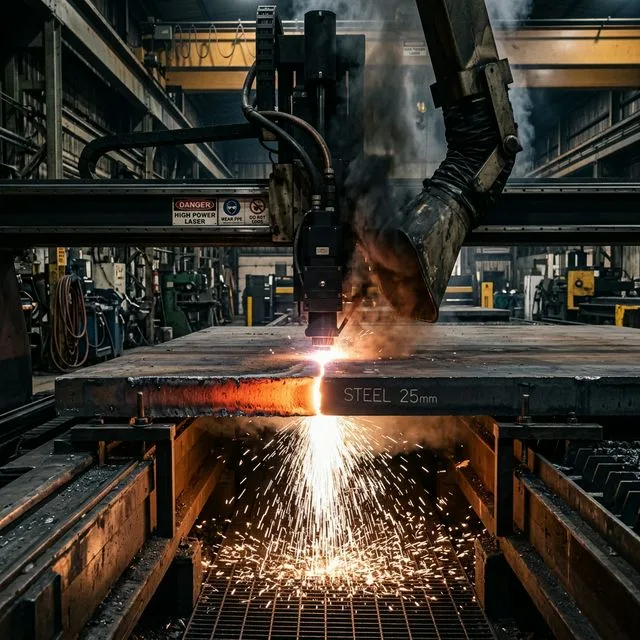

Thick Plate Cutting (>20mm)
Tube and Pipe Cutting
7. Process Database Development
Recommended Database Schema
| Field Name | Data Type | Required | Description | Example Value |
|---|---|---|---|---|
| Material Type | string | Yes | Material category | Mild Steel |
| Material Grade | string | Yes | Specific grade or alloy | ASTM A36 |
| Thickness | number | Yes | Material thickness in mm | 3.0 |
| Laser Type | string | Yes | Laser technology | Fiber Laser |
| Laser Power | string | Yes | Rated laser power | 6kW |
| Cutting Speed | number | Yes | Cutting speed in m/min | 3.5 |
| Assist Gas Type | string | Yes | Type of assist gas | Oxygen |
| Gas Pressure | number | Yes | Gas pressure in bar | 2.5 |
| Gas Purity | string | No | Gas purity percentage | 99.5% |
| Focus Position | number | Yes | Focus position in mm (negative = below surface) | -1.0 |
Showing 10 of 26 recommended fields. Complete schema includes quality metrics, validation info, and notes fields.
Data Collection & Validation
Version Control & Management
Statistical Process Control (SPC)
Implement SPC to monitor parameter stability and detect drift before quality issues occur:
- Control Charts: Plot key metrics (cutting speed, gas pressure, edge roughness) over time. Set control limits at ±3 standard deviations from mean.
- Trend Analysis: Identify gradual parameter drift (e.g., lens contamination causing power loss). Address before reaching control limits.
- Capability Analysis: Calculate Cpk for critical dimensions. Target Cpk ≥1.33 for process capability. Cpk <1.0 indicates process cannot meet specifications consistently.
- Quarterly Review: Analyze SPC data to identify improvement opportunities, update parameter targets, and retire obsolete entries.
8. Continuous Improvement & KPI Monitoring
Systematic monitoring of key performance indicators (KPIs) enables data-driven optimization and early detection of process degradation. Track these metrics to quantify improvement and justify optimization investments.
First-Pass Yield Rate
Percentage of parts that meet quality specifications without rework or scrap
≥95% for established processes, ≥90% for new processes
- Analyze root causes of rejects using Pareto analysis
- Validate and lock parameter database for proven materials
- Implement first-article inspection protocol
- Train operators on quality checkpoints
- Review and update parameters quarterly based on yield data
Average Cycle Time
Total time from job start to completion including setup, cutting, and part removal
Trend downward over time. Benchmark against similar jobs.
- Optimize nesting to reduce cutting path length
- Implement common-line cutting to reduce pierce count
- Standardize setups to reduce changeover time
- Use automated loading/unloading where feasible
- Analyze time breakdown: setup vs cutting vs handling
Material Utilization Rate
Percentage of sheet material converted to finished parts vs scrap
≥85% for automated nesting, ≥80% for manual nesting
- Invest in advanced nesting software
- Implement remnant tracking and reuse system
- Batch similar parts to improve nesting density
- Use common-line cutting where possible
- Track utilization by material type to identify improvement opportunities
Scrap Rate
Percentage of material or parts that become scrap due to quality defects
≤2% for established processes, ≤5% for new processes
- Categorize scrap by root cause (setup error, parameter issue, material defect, operator error)
- Implement corrective actions for top 3 scrap causes
- Improve first-article inspection to catch issues early
- Validate material certifications match parameter database
- Consider material testing for suspect batches
Parameter Drift Rate
Frequency of parameter adjustments required to maintain quality
≤10% for established materials (indicates stable process)
- Investigate high drift rates - may indicate equipment issues
- Check for consumable wear patterns (lens contamination, nozzle wear)
- Verify material batch consistency with supplier
- Implement preventive maintenance schedule
- Document all parameter changes with justification for trend analysis
Consumable Cost per Part
Total consumable costs (nozzles, lenses, windows, gas) divided by parts produced
Trend downward. Benchmark against similar parts.
- Track consumable life hours to optimize replacement timing
- Reduce pierce count through nesting optimization
- Optimize gas pressure to avoid over-consumption
- Implement proper handling procedures to prevent damage
- Consider bulk purchasing or alternative suppliers for cost reduction
Implementing a Continuous Improvement Culture
Successful process optimization requires organizational commitment beyond technical changes:
- Daily Production Meetings: 15-minute standup to review previous day KPIs, discuss issues, and plan improvements. Focus on facts and data, not blame.
- Operator Empowerment: Train operators to identify and document quality issues. Implement suggestion system with recognition for improvements.
- Root Cause Analysis: Use 5-Why or fishbone diagrams for recurring issues. Document findings and corrective actions in database.
- Benchmark Tracking: Compare performance against industry standards and internal historical data. Celebrate improvements, investigate degradation.
- Investment Justification: Use KPI data to quantify ROI for equipment upgrades, software purchases, or training programs. Data-driven proposals get approved faster.
