Laser Cutting Edge Quality Standards
Understand and achieve optimal edge quality with ISO 9013 standards. Compare quality grades, identify defects, and learn improvement methods for laser cutting excellence.
📐 Understanding Edge Quality
Edge quality in laser cutting is defined by multiple parameters per ISO 9013:2017 international standard. Each quality grade (1-4) specifies tolerance ranges for perpendicularity, roughness, dross, and other characteristics.
Perpendicularity
Measures how vertical the cut edge is. Critical for welding and assembly. Grade 1: ±0.05mm, Grade 4: ±0.50mm.
Roughness (Ra)
Surface texture measurement in micrometers. Lower = smoother. Grade 1: 1.6-3.2μm, Grade 4: 12.5-25μm.
Dross
Molten material re-solidified on bottom edge. Unacceptable in Grade 1, moderate amounts OK in Grade 4.
HAZ
Heat Affected Zone - material property changes from thermal input. Minimize for structural integrity.
ISO 9013 Quality Classification
Grade 1 (Precision)
Highest quality - precision cutting with near-mirror finish
Grade 2 (Fine)
High quality with excellent edge finish
Grade 3 (Standard)
Production quality - acceptable for most applications
Grade 4 (Economy)
Rough cutting for non-critical applications
📐 Edge Profile Comparison
Visual cross-sectional comparison of edge profiles across quality grades. Click on any grade to see detailed characteristics.
Grade 1 (Precision)
Grade 2 (Fine)
Grade 3 (Standard)
Grade 4 (Economy)
📊 Understanding Roughness Measurements (Ra vs Rz5)
ISO 9013:2017 uses Rz5 (Mean Height of Profile) as the primary roughness metric for thermal cutting quality classification. Understanding the difference between Ra and Rz5 is critical for proper quality specification.
Ra (Arithmetic Average)
Definition: Average of absolute values of profile heights over evaluation length
Measurement: Most common roughness parameter, easy to measure with contact profilometer
Typical Use: General surface finish specification, machining quality control
Rz5 (Mean Height)
Definition: Average of 5 largest peak-to-valley heights within sampling length
Measurement: ISO 9013:2017 primary metric for thermal cutting edge quality
Typical Use: Thermal cutting quality classification, captures extreme variations
| Aspect | Ra (Arithmetic Average) | Rz5 (Mean Height) |
|---|---|---|
| Calculation Method | Average of all absolute deviations | Average of 5 largest peak-to-valley heights |
| Sensitivity | Less sensitive to extreme variations | Highly sensitive to extreme variations |
| ISO 9013:2017 | Secondary reference | Primary metric ✓ |
| Typical Values | 1.6 - 25 μm (laser cutting) | 10 - 160 μm (laser cutting) |
| Conversion | Approximate: Rz5 ≈ 5-8 × Ra (varies by process) | |
| Best For | General machining, consistent surfaces | Thermal cutting, surfaces with striations |
🔑 Key Takeaways
- •ISO 9013:2017 uses Rz5 as the primary roughness metric for thermal cutting quality classification
- •Rz5 captures extreme variations better than Ra, making it more suitable for laser cutting with striations
- •Both metrics are valid - Ra is more common in general manufacturing, Rz5 is standard for thermal cutting
- •Rough conversion: Rz5 values are typically 5-8 times larger than Ra values for the same surface
- •Always specify which metric when communicating quality requirements to avoid confusion
📏 Thickness-Dependent Tolerances
Perpendicularity tolerances vary by material thickness per ISO 9013:2017. Thicker materials require looser tolerances due to increased beam divergence and heat accumulation.
Perpendicularity Tolerance by Material Thickness
Chart Interpretation: As material thickness increases, perpendicularity tolerances become looser (higher values) for all grades. Thicker materials are more challenging to cut with perfect perpendicularity due to increased heat accumulation and beam divergence through the material.
| Thickness Range | Grade 1 (Precision) | Grade 2 (Fine) | Grade 3 (Standard) | Grade 4 (Economy) |
|---|---|---|---|---|
| 0.5 - 3mm | ±0.05mm | ±0.10mm | ±0.20mm | ±0.40mm |
| 3 - 10mm | ±0.05mm | ±0.15mm | ±0.30mm | ±0.50mm |
| 10 - 20mm | ±0.08mm | ±0.20mm | ±0.40mm | ±0.70mm |
| 20 - 32mm | ±0.10mm | ±0.25mm | ±0.50mm | ±0.90mm |
⚠️ Thickness Impact
- • Thicker materials = looser tolerances
- • Grade 1 tolerance increases 2x from thin to thick
- • Grade 4 tolerance increases 2.25x
- • Above 20mm, consider alternative processes for Grade 1
✓ Best Practices
- • Specify grade AND thickness in requirements
- • Use multiple passes for thick + Grade 1
- • Verify perpendicularity at process qualification
- • Consider material type alongside thickness
🔬 Material-Specific Quality Guidelines
Different materials achieve different quality grades with varying difficulty. This matrix shows which grades are easily achievable for common laser cutting materials.
| Material | Grade 1 (Precision) | Grade 2 (Fine) | Grade 3 (Standard) | Grade 4 (Economy) | Difficulty |
|---|---|---|---|---|---|
| Mild Steel | Hard | Possible | ✓ Easy | Always | Easy |
| Stainless Steel 304/316 | Possible | ✓ Easy | ✓ Easy | Always | Medium |
| Aluminum 5052/6061 | Possible | ✓ Easy | ✓ Easy | Always | Medium |
| Copper/Brass | Hard | Possible | ✓ Easy | Always | Difficult |
| Titanium | Possible | ✓ Easy | ✓ Easy | Always | Medium |
| Galvanized Steel | Hard | Possible | ✓ Easy | Always | Easy |
Matrix Legend
Achievability Indicators:
Overall Difficulty:
✓ Easy to Cut
Mild Steel: Excellent with oxygen assist. Grade 2-3 readily achievable with standard parameters.
⚠️ Requires Care
Stainless & Aluminum: Need nitrogen for Grade 1-2. Oxidation and reflectivity concerns.
⚡ Challenging
Copper/Brass: High thermal conductivity and reflectivity. Fiber laser preferred.
🌍 International Standards Comparison
Edge quality standards vary globally. Compare ISO 9013, AWS D1.1, EN 1090, and JIS B0417 to understand regional requirements and grade equivalents.
| Standard | Region | Grade 1 Equivalent | Grade 2 Equivalent | Grade 3 Equivalent | Grade 4 Equivalent | Details |
|---|---|---|---|---|---|---|
ISO 9013:2017 ISO 9013:2017 Thermal Cutting - Classification of thermal cuts | International | Grade 1 | Grade 2 | Grade 3 | Grade 4 | |
AWS D1.1 AWS D1.1 Structural Welding Code - Steel | North America | N/A | Acceptable for welding | May require prep | Requires preparation | |
EN 1090 EN 1090 Execution of steel structures | Europe | EXC4 | EXC3 | EXC2 | EXC1 | |
JIS B0417 JIS B0417 Laser processing machines - Vocabulary | Japan | Class A | Class B | Class C | Class D |
🌍 Global Standards Overview
ISO 9013:2017 is the primary international standard for thermal cutting quality classification worldwide
AWS D1.1 focuses on weldability rather than cutting quality, common in North American structural steel
EN 1090 covers entire fabrication process with execution classes, required for CE marking in Europe
JIS B0417 is widely used in Asia-Pacific region and generally compatible with ISO standards
⚠️ Important Considerations
- •Not directly interchangeable: Grade equivalents are approximate, not exact conversions
- •Specify the standard: Always reference which standard applies to your project requirements
- •Regional requirements: Some regions mandate specific standards for compliance (e.g., CE marking)
- •Customer specifications: Customer drawings may reference any of these standards
- •Welding vs cutting: AWS focuses on weldability, ISO on cutting quality - different priorities
📋 Quick Reference Guide
When to use ISO 9013:
- • International projects
- • Laser/plasma/oxyfuel cutting quality specification
- • General manufacturing and fabrication
- • When customer doesn't specify a standard
When to use AWS D1.1:
- • Structural steel welding in North America
- • Bridge and building construction
- • When edge preparation for welding is critical
- • Customer specifies AWS compliance
When to use EN 1090:
- • Steel structures sold in European Union
- • CE marking compliance required
- • Execution class specified in contract
- • European construction projects
When to use JIS B0417:
- • Projects in Japan and Asia-Pacific
- • Japanese customer specifications
- • Compatible with ISO requirements
- • Regional manufacturing standards
🏭 Industry-Specific Acceptance Criteria
Quality requirements vary significantly by industry sector. Aerospace demands Grade 1, while construction typically accepts Grade 3. Understand typical and minimum grades by application.
Aerospace
Critical Parameters:
Strictest requirements. Grade 1 mandatory. 100% edge inspection required. Metallurgical analysis for critical parts
Medical Devices
Critical Parameters:
Grade 1 required for surgical instruments and implants. Biocompatibility and sterilization considerations
Automotive (Structural)
Critical Parameters:
Grade 2 for safety-critical components. Grade 3 acceptable for non-structural parts
Electronics Enclosures
Critical Parameters:
Grade 2 for visible surfaces. Grade 3 acceptable for internal brackets
Construction & HVAC
Critical Parameters:
Grade 3 standard for most applications. Grade 4 acceptable for rough blanking
Furniture & Displays
Critical Parameters:
Grade 2 for visible edges. Nitrogen cutting for stainless steel displays
| Industry Sector | Typical Grade | Minimum Grade | Key Focus Areas |
|---|---|---|---|
✈️Aerospace | 1 | Grade 1+ | Perpendicularity, HAZ depth, Micro-cracks |
🏥Medical Devices | 1 | Grade 1+ | Surface finish, Cleanliness, Burr-free edges |
🚗Automotive (Structural) | 2 | Grade 2+ | Perpendicularity, Weldability, Dross removal |
💻Electronics Enclosures | 2 | Grade 2+ | Burr-free edges, Dimensional accuracy, Surface appearance |
🏗️Construction & HVAC | 3 | Grade 3+ | Weldability, Structural integrity, Cost efficiency |
🪑Furniture & Displays | 2 | Grade 2+ | Surface appearance, Burr-free, Minimal oxidation |
📊 Industry Quality Requirements Summary
Highest Standards (Grade 1):
- ✈️Aerospace: Safety-critical components, 100% inspection, metallurgical analysis required
- 🏥Medical Devices: Surgical instruments, implants, biocompatibility considerations
Standard Production (Grade 2-3):
- 🚗Automotive: Grade 2 for structural, Grade 3 for non-critical parts
- 🏗️Construction: Grade 3 standard, focus on weldability and cost efficiency
✓ Best Practices by Industry
Match Quality to Application
Don't over-specify quality grades. Use Grade 1 only when truly necessary (aerospace, medical). Grade 2-3 is sufficient for 90% of industrial applications.
Document Requirements Clearly
Specify grade, standard (ISO/AWS/EN), and critical parameters on drawings. Include inspection frequency and acceptance criteria to avoid disputes.
Consider Post-Processing
If parts will be welded, coated, or machined, factor this into quality requirements. Grade 3 edges may be acceptable if subsequent operations will modify the edge.
Balance Cost and Quality
Grade 1 costs 80% more than Grade 3. Analyze which parts truly need premium quality versus where standard quality is acceptable.
🔧 Edge Preparation for Welding
Welding process requirements dictate minimum edge quality. TIG welding requires Grade 1-2, while stick welding accepts Grade 3-4. Match cutting quality to your welding process.
GMAW (MIG/MAG)
2GTAW (TIG)
1SMAW (Stick)
3Laser/Electron Beam
1Resistance (Spot/Seam)
2| Welding Process | Min Grade | Max Roughness | Edge Preparation | Difficulty |
|---|---|---|---|---|
| GMAW (MIG/MAG) | 2 | Ra 12.5 μm | Dross-free, light deburring | Moderate |
| GTAW (TIG) | 1 | Ra 6.3 μm | Mirror-smooth, zero dross | Strict |
| SMAW (Stick) | 3 | Ra 25 μm | Basic cleaning adequate | Lenient |
| Laser/Electron Beam | 1 | Ra 3.2 μm | Perfect cleanliness required | Strict |
| Resistance (Spot/Seam) | 2 | Ra 12.5 μm | Clean surface contact | Moderate |
Edge Preparation Visual Guide
🔑 Key Guidelines for Welding Edge Preparation
Critical Success Factors:
- 1.Match cutting quality to welding process: TIG requires Grade 1-2, Stick accepts Grade 3-4
- 2.Dross removal is mandatory: Even for forgiving processes, loose dross causes porosity
- 3.Oxide-free for stainless: Use nitrogen cutting or clean edges before welding stainless steel
- 4.Perpendicularity matters: Poor perpendicularity causes fit-up issues and incomplete fusion
Common Mistakes to Avoid:
- ✗Using oxygen-cut edges for TIG welding stainless steel
- ✗Ignoring dross on bottom edge - causes weld defects
- ✗Over-specifying quality when Grade 3 is sufficient
- ✗Skipping edge inspection before critical welds
📋 Quick Reference: Cutting Quality for Welding

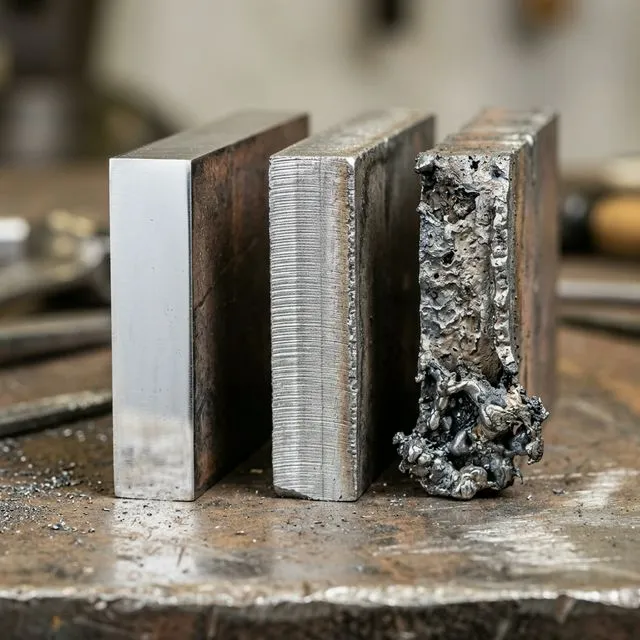

🔍 Visual Defect Identification Guide
Identify common edge defects with visual diagrams. Click on any defect to see causes and solutions.
Dross/Slag Attachment
majorExcessive Striations (Drag Lines)
minorEdge Burning/Oxidation
majorNon-Perpendicular Cut (Taper)
criticalKerf Width Variation
majorMicro-Cracks at Edge
criticalBurr Formation
minorHow to use: Click on any defect card to see detailed causes and solutions. The diagrams show cross-sectional views of the cut edge with the defect highlighted. Severity levels indicate the impact on part quality and functionality.
✅ Quality Inspection Checklist
Step-by-step quality verification process. Use this interactive checklist to ensure comprehensive edge quality inspection per ISO 9013:2017 requirements.
Inspection Progress
0 / 8 Steps CompleteVisual Inspection
Method: Naked eye and magnifying glass
Dross Height
Method: Go/no-go gauge or scraper test
Perpendicularity
Method: Dial indicator or square measurement
Surface Roughness (Ra/Rz5)
Method: Contact or optical profilometer
Dimensional Accuracy
Method: Caliper or CMM measurement
Kerf Width Consistency
Method: Measure kerf at multiple locations
Heat Affected Zone
Method: Metallographic cross-section
Burr Height
Method: Tactile inspection and measurement
📋 Inspection Guidelines
Inspection Sequence:
- 1.Visual first: Quick check for obvious defects before detailed measurements
- 2.Dross check: Easy to verify, determines if part needs rework
- 3.Dimensional: Verify perpendicularity and dimensions meet tolerances
- 4.Roughness: Sample-based, not every part unless Grade 1 required
- 5.Metallurgical: Only for qualification or critical aerospace/medical parts
Best Practices:
- ✓First article inspection: Complete all steps for first part of new setup
- ✓Statistical sampling: Use sampling plans for production runs
- ✓Document results: Record measurements for traceability
- ✓Calibrated equipment: Ensure all measurement tools are calibrated
- ✓Trained inspectors: Personnel should understand acceptance criteria
🔧 Inspection Equipment Reference
Basic Tools:
- • 10x magnifying glass
- • Digital caliper (±0.01mm)
- • Engineer's square
- • Dross gauge/scraper
Precision Tools:
- • Dial indicator
- • Surface profilometer
- • Optical microscope
- • CMM (Coordinate Measuring Machine)
Lab Equipment:
- • Metallographic microscope
- • Polishing/etching equipment
- • Hardness tester
- • Optical comparator
📏 Quality Measurement Methods
| Parameter | Method | Standard | Frequency |
|---|---|---|---|
| Surface Roughness (Ra) | Contact or optical profilometer | ISO 4287 | Sample-based QC or every batch |
| Perpendicularity | Dial indicator or CMM measurement | ISO 9013 | First article and periodic checks |
| Dross Height | Visual inspection and go/no-go gauge | ISO 9013 | Every part or sampling |
| Heat Affected Zone | Metallographic cross-section analysis | Microscopy per ASTM E3 | Qualification and periodic audits |
| Kerf Width | Optical microscope or caliper | Company specification | First article and process control |
💡 Quality Optimization Tips
Match Quality to Application
Don't over-specify. Grade 3 is sufficient for 80% of applications. Reserve Grade 1 for precision parts where tolerances matter. Using Grade 1 for everything increases costs 80% unnecessarily.
Optimize Gas Selection
Nitrogen produces Grade 1-2 quality on stainless steel but costs 3x more than oxygen. For carbon steel structural parts (Grade 3 acceptable), oxygen saves 60% on gas costs.
Monitor and Control Variables
Quality consistency requires controlling: material flatness, lens cleanliness, gas pressure, nozzle condition, and focus position. Check these daily for Grade 1-2 work.
Document Your Parameters
Create a parameter library for each material/thickness/grade combination. Once optimized, document speeds, powers, gas settings. Reduces setup time and ensures repeatability.
📊 Quality vs Cost Trade-offs
| Grade | Speed | Gas Cost | Total Cost | Best Use |
|---|---|---|---|---|
| Grade 1 | Slow (-50%) | High N₂ | 1.8x | Critical precision parts only |
| Grade 2 | Medium (-30%) | Medium N₂ | 1.3x | High-quality production |
| Grade 3 | Fast (baseline) | Low O₂/Air | 1.0x | Standard production (most common) |
| Grade 4 | Very Fast (+20%) | Very Low | 0.6x | Rough blanking, non-critical |
🔧 Related Resources & Guides
Assist Gas Selection
Gas choice affects quality significantly - nitrogen for Grade 1-2
Cutting Speed Chart
Optimize speed-quality balance for different grades
Lens Specifications
Lens choice impacts edge quality and kerf width
Nozzle Selection Guide
Nozzle type and condition affect dross formation
Focus Position Guide
Focus position critical for perpendicularity
Material & Thickness Parameters
Recommended parameters by material and thickness
Process Optimization
Comprehensive guide to improving cut quality
Troubleshooting Guide
Diagnose and fix edge quality problems
Cost Calculator
Calculate cost impact of different quality grades
Data Disclaimer: This edge quality data is based on ISO 9013:2017 international standard and industry best practices, for reference only. Actual quality grades and acceptance criteria depend on specific application requirements, customer specifications, and industry standards. Always refer to applicable standards and customer drawings. Data last updated: 2025-11-02.
