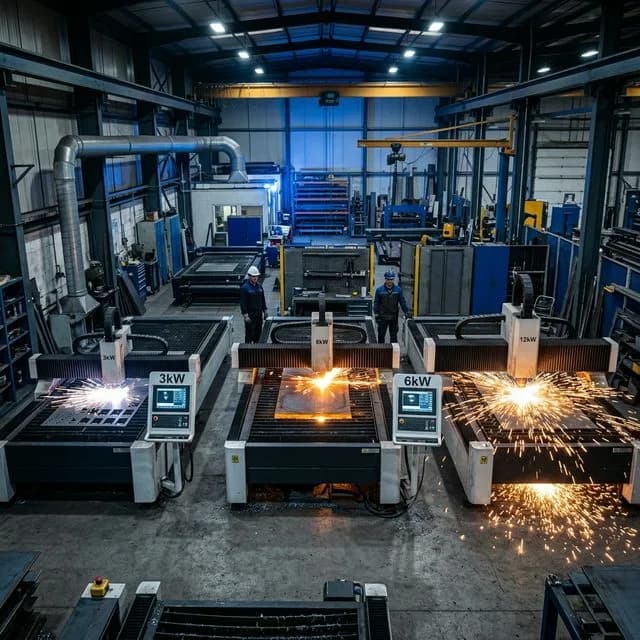

3kW vs 6kW vs 12kW Fiber Laser Power Comparison
Choosing the right fiber laser power is critical for maximizing productivity, edge quality, and return on investment. This comprehensive guide compares 3kW, 6kW, and 12kW fiber laser systems based on verified manufacturer data, cutting speed benchmarks, material capabilities, and real-world operating costs.
3kW Fiber Laser
Entry-Level Precision
6kW Fiber Laser
Versatile Workhorse
12kW Fiber Laser
High-Volume Production
Material Cutting Capability Comparison
| Material | 3kW Capacity | 6kW Capacity | 12kW Capacity | Assist Gas |
|---|---|---|---|---|
| Carbon Steel (Mild Steel) | 0.5-10mm Optimal: ≤8mm | 0.5-20mm Optimal: 6-16mm | 0.5-30mm Optimal: 12-25mm | O₂ (speed) N₂ (clean edge) |
| Stainless Steel (304/316) | 0.5-6mm Excellent finish | 0.5-12mm Balanced quality | 0.5-20mm High throughput | N₂ (16-20 bar) |
| Aluminum (5052/6061) | 0.5-5mm Precise control needed | 0.5-10mm Robust parameters | 0.5-15mm Limited by ejection | N₂ (18-22 bar) |
| Copper (C11000) | 0.5-2mm High reflectivity | 0.5-4mm Better absorption | 0.5-6mm Specialized nozzle | N₂ / O₂ hybrid |
| Brass (C26000) | 0.5-3mm Moderate difficulty | 0.5-5mm Good processing | 0.5-8mm Excellent control | N₂ (16-20 bar) |
| Titanium (Grade 2/5) | 0.5-4mm Inert gas critical | 0.5-8mm Good edge quality | 0.5-12mm Fast processing | Ar / N₂ (pure) |
Note: Maximum thickness values based on oxygen-assist cutting for carbon steel. Nitrogen cutting reduces maximum thickness by 30-40%. Values represent production-quality cuts; experimental capabilities may extend 10-15% higher with compromised edge quality.
Cutting Speed Performance Comparison
| Material & Thickness | 3kW Speed | 6kW Speed | 12kW Speed | 6kW vs 3kW | 12kW vs 6kW |
|---|---|---|---|---|---|
| Carbon Steel (O₂ Assist) | |||||
| 1mm | 18-22 m/min | 28-35 m/min | 35-45 m/min | +55% | +29% |
| 3mm | 8-12 m/min | 14-18 m/min | 18-25 m/min | +50% | +39% |
| 6mm | 2.5-3.8 m/min | 4-6 m/min | 6-9 m/min | +58% | +50% |
| 10mm | 1.2-1.8 m/min | 2.0-3.0 m/min | 2.8-4.2 m/min | +67% | +40% |
| 15mm | — | 1.0-1.5 m/min | 1.8-2.5 m/min | — | +67% |
| 20mm | — | 0.6-0.9 m/min | 1.4-2.0 m/min | — | +122% |
| Stainless Steel 304/316 (N₂ Assist) | |||||
| 1mm | 12-16 m/min | 18-24 m/min | 25-32 m/min | +50% | +33% |
| 3mm | 5-8 m/min | 8-12 m/min | 12-16 m/min | +50% | +33% |
| 6mm | 2.2-3.5 m/min | 4-6 m/min | 6-8 m/min | +71% | +33% |
| 10mm | — | 1.5-2.5 m/min | 2.5-3.8 m/min | — | +52% |
| Aluminum 5052/6061 (N₂ Assist) | |||||
| 1mm | 10-14 m/min | 16-22 m/min | 22-28 m/min | +57% | +27% |
| 3mm | 4-6 m/min | 6-9 m/min | 9-13 m/min | +50% | +44% |
| 6mm | 1.8-2.8 m/min | 3-4.5 m/min | 4.5-6.5 m/min | +56% | +44% |
| 10mm | — | 1.2-2.0 m/min | 2.0-3.2 m/min | — | +60% |
Data Source: Compiled from Trumpf TruLaser Series, Bystronic ByStar Fiber, and Mazak Optiplex specifications (2024-2025 models). Speeds represent stable production cutting with good edge quality. Peak speeds may be 15-20% higher with optimized parameters. Gas pressure: O₂ at 0.5-1.2 bar, N₂ at 16-20 bar. Nozzle diameters: 1.0-2.5mm depending on thickness.
Hourly Operating Cost Comparison
| Cost Component | 3kW System | 6kW System | 12kW System |
|---|---|---|---|
| Electrical Power Consumption | $2.40-3.00/hr 20-25kW @ $0.12/kWh | $4.80-6.60/hr 40-55kW @ $0.12/kWh | $9.60-13.20/hr 80-110kW @ $0.12/kWh |
| Assist Gas (Nitrogen, avg) | $3-6/hr 15-30 m³/hr @ $0.20/m³ | $6-12/hr 30-60 m³/hr @ $0.20/m³ | $10-18/hr 50-90 m³/hr @ $0.20/m³ |
| Consumables (Nozzles, Lenses) | $2-4/hr Lower wear rates | $3-6/hr Moderate wear | $5-9/hr Higher throughput wear |
| Maintenance & Service | $1-2/hr 20,000hr laser life | $2-4/hr 20,000hr laser life | $4-7/hr 20,000hr laser life |
| Total Hourly Operating Cost | $8.40-15/hr | $15.80-28.60/hr | $29.20-47.20/hr |
| Labor Cost (not included above) | $25-35/hr operator + $50-75/hr programming (amortized) | ||
Note: Costs exclude material, labor, and facility overhead. Nitrogen pricing varies regionally ($0.15-0.30/m³). Oxygen assist reduces gas costs by 70-80% but produces oxidized edges unsuitable for stainless steel/aluminum. Higher power systems can significantly reduce cost-per-part through time savings when utilization is high.
Infrastructure & Facility Requirements
| Requirement | 3kW System | 6kW System | 12kW System |
|---|---|---|---|
| Electrical Supply | 3-phase 480V, 60A Standard industrial service | 3-phase 480V, 120A May require panel upgrade | 3-phase 480V, 200-250A Dedicated transformer recommended |
| Cooling System | 3-5 kW chiller 5-10 L/min flow Air-cooled sufficient | 7-10 kW chiller 15-25 L/min flow Water-cooled preferred | 15-20 kW chiller 30-50 L/min flow Industrial water-cooled |
| Gas Supply | N₂: 16-20 bar, 30 m³/hr O₂: 4-8 bar, 15 m³/hr Bottle or generator | N₂: 16-20 bar, 60 m³/hr O₂: 4-8 bar, 30 m³/hr Generator recommended | N₂: 18-22 bar, 90 m³/hr O₂: 4-10 bar, 45 m³/hr High-capacity generator required |
| Floor Space | 4×8' table: 25-35 m² 5×10' table: 35-45 m² Includes material handling | 5×10' table: 40-55 m² 6×12' table: 50-65 m² Loading/unloading space | 6×12' table: 60-80 m² 6×20' table: 80-100 m² Automation integration space |
| Ventilation & Fume Extraction | 2,000-3,000 m³/hr Standard extraction unit | 4,000-6,000 m³/hr High-capacity extraction | 8,000-12,000 m³/hr Industrial extraction system |
| HVAC / Temperature Control | 18-28°C ambient Standard AC acceptable | 18-26°C recommended Stable temp for accuracy | 20-24°C required Precision temp control |
Planning Note: Infrastructure investments can add 15-30% to total system cost. Facility readiness should be assessed 3-6 months before equipment delivery. Consider future expansion: oversizing electrical service and cooling by 30-50% allows painless power upgrades.
ROI Analysis & Payback Scenarios
Scenario: Job Shop (Mixed 3-12mm Work)
Scenario: Heavy Fabrication (10-20mm Focus)
Key ROI Factors
- Utilization > 50% (4+ hours/shift active cutting)
- Material thickness in system's optimal range
- Labor costs high relative to equipment costs
- Demand exceeds current capacity
- Multi-shift operations planned
- Primarily thin materials (<6mm) with excellent finish requirements
- Low utilization or prototyping focus
- Facility constraints (electrical, space, cooling)
- Budget limited, can upgrade later
- Single-shift operation with excess capacity
Power Selection Decision Framework
Choose 3kW If...
Choose 6kW If...
Choose 12kW If...
Technical Specifications Comparison
| Specification | 3kW | 6kW | 12kW |
|---|---|---|---|
| Beam Quality (M²) | <1.08 | <1.10 | <1.15 |
| Focus Diameter (typical) | 0.06-0.10 mm | 0.08-0.12 mm | 0.10-0.15 mm |
| Wavelength | 1070 nm ±10nm (Fiber Laser) | ||
| Power Stability | ±2% | ±2% | ±3% |
| Laser Source Lifespan | 20,000-30,000 hours (typical diode life) | ||
Related Tools & Guides
Power Calculator
Calculate required laser power based on material type, thickness, and cutting speed
Cost Estimator
Detailed operating cost breakdown including electricity, gas, and maintenance
Cutting Speed Chart
Comprehensive speed reference across materials, thickness, and power levels
Equipment Database
Browse and compare fiber laser systems by power, manufacturer, and specifications
Compare Equipment
Side-by-side comparison tool for multiple laser systems
Installation Requirements
Facility planning guide for electrical, cooling, and ventilation systems
CO2 vs Fiber Laser
Technology comparison and application-specific recommendations
Complete Selection Guide
Comprehensive laser equipment selection framework and decision criteria
Data Sources & Methodology
Technical specifications and performance data compiled from:
- Trumpf TruLaser Series 1000-5000 Technical Documentation (2024-2025)
- Bystronic ByStar Fiber Product Specifications & Cutting Charts
- Mazak Optiplex Series Performance Data & Application Guides
- IPG Photonics Laser Source Specifications
- Coherent HighLight Fiber Laser System Data
- Industry benchmarks from FABTECH, EuroBLECH, and published case studies
Cost estimations based on: 2025 North American pricing, $0.12/kWh electricity rate, $0.20/m³ nitrogen, standard industrial labor rates, and 20,000-hour laser source lifespan. Regional variations may apply.
Disclaimer: All data represents typical performance ranges for production-quality cutting. Actual results depend on specific equipment models, beam quality, focus position, material grade, assist gas purity, environmental conditions, and operator expertise. Always conduct on-site test cuts and consult manufacturer specifications before making equipment decisions. This guide is for informational purposes only.
