Best Large Format Laser Cutting Machines
When standard 3m×1.5m sheets aren't big enough, you need specialized equipment. Here's what to consider for 6m, 8m, and even 12m bed laser cutters.
Key Considerations
- Foundation: Large machines need reinforced floors—consult your installer
- Material handling: 6m sheets weigh 1-3 tons—crane access is essential
- Building fit: Measure door openings before ordering
Who Needs Large Format?
Standard laser cutters handle sheets up to 3m×1.5m or 4m×2m. That covers most fabrication work. Large format machines make sense for:

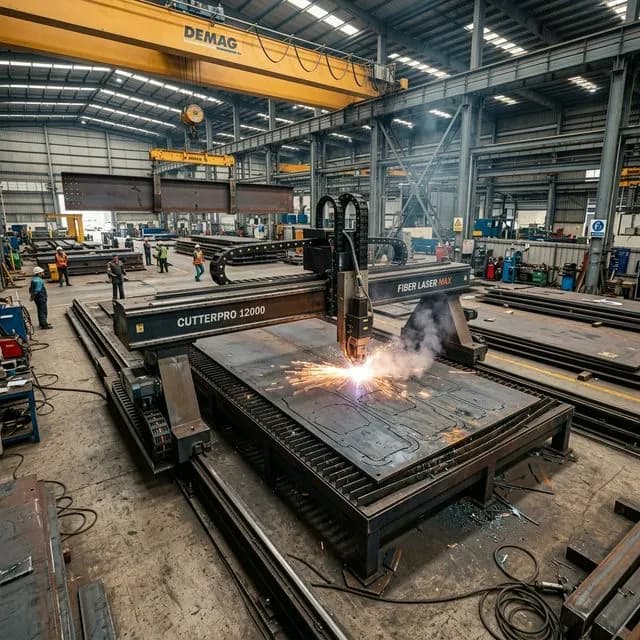

- Shipbuilding: Hull plates, structural members without splicing
- Construction: Bridge components, architectural panels
- Transportation: Railcar bodies, truck chassis
- Energy: Wind tower sections, tank shells
- Heavy equipment: Excavator booms, crane arms
Bed Size Standards
| Designation | Typical Size | Sheet Sizes Handled |
|---|---|---|
| Standard Large | 6m × 2m | Full plate (6m×2m), double-up 3m sheets |
| Extended | 8m × 2.5m | Long structural members, wide panels |
| Ultra-Large | 12m × 3m+ | Ship plates, oversized construction |
Technical Challenges
Maintaining Accuracy Over Length
Keeping ±0.1mm accuracy over 6+ meters requires exceptional machine rigidity. Temperature changes in long bed frames cause measurable thermal expansion. Premium machines use temperature compensation and climate-controlled enclosures.
Sheet Flatness
Large steel plates are never perfectly flat. Wave patterns from rolling require adaptive focus systems or pre-leveling equipment. Some machines include electromagnetic hold-down tables for thin sheets.
Extraction
Fume extraction for 12m×3m cutting areas is a serious engineering challenge. Segmented extraction (active zones that follow the cutting head) reduces airflow requirements and energy costs.
Large Format Machines (15 found)
Power Requirements for Thick Plate
Large format work often means thick plate. Match your power to your thickness:
- 6kW: Adequate for 20mm mild steel
- 12kW: Comfortable 25mm, can push to 30mm
- 20kW+: Production cutting 30-40mm plate
Manufacturers in This Segment
Not all laser manufacturers offer true large format. The specialists:
- TRUMPF: TruLaser series up to 8m
- Bystronic: ByStar Fiber extended beds
- Messer: Specialized in large format plasma/laser
- HSG: G Series extended options to 12m
- JLMN/Penta: Chinese specialists in oversized beds
Installation Considerations
- ✅ Floor loading capacity (often 2-5 tons/m²)
- ✅ Clear height for automation (5m+ recommended)
- ✅ Power supply (200-400kVA typical)
- ✅ Material flow—how do 6m sheets enter the building?
- ✅ Crane capacity for sheet loading
