Laser Beam Quality M² Factor: Complete Technical Guide
Comprehensive technical analysis of laser beam quality M² factor from physical principles to industrial applications: ISO 11146 measurement standards, BPP calculations, focus spot size impact, cutting performance optimization, and equipment selection criteria based on verified manufacturer specifications.
1. What is M² Factor
Physical Definition
M² (pronounced "M-squared") is the international standard parameter for measuring laser beam quality, defined as the ratio of the beam parameter product (BPP) of an actual laser beam to that of an ideal Gaussian beam.
Mathematical Expression

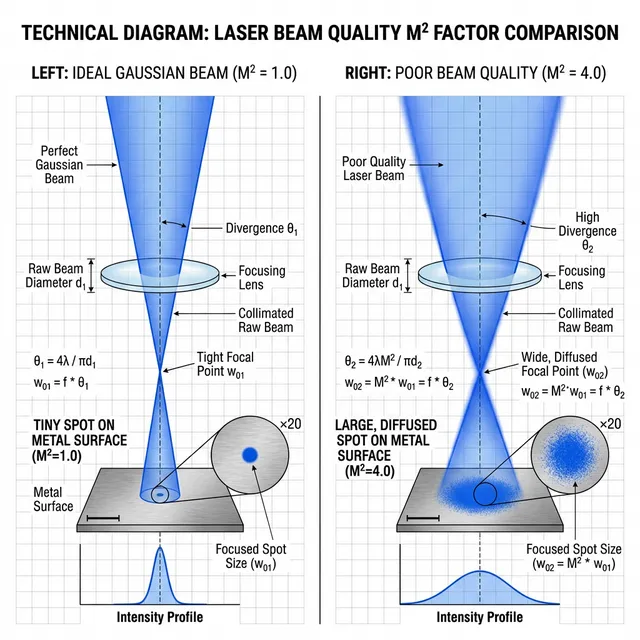

M² Relationship to Beam Divergence & Focus Spot Size
Higher M² values result in greater beam divergence and larger focused spot sizes, directly impacting energy density and processing precision. The focused spot diameter is proportional to M², making it a critical parameter for cutting quality and speed.
Reducing M² from 2.0 to 1.1 (45% improvement) decreases spot diameter by 45%, increasing peak power density by 2.5× for the same laser power, enabling significantly faster cutting speeds on thin materials.
2. M² Factor Measurement Methods
ISO 11146 Standard Measurement Protocol
According to ISO 11146 international standard, M² measurement requires measuring beam diameter at multiple positions before and after the focal point, then fitting the data to a hyperbolic function. This method provides accurate, reproducible results for comparing different laser systems.
- Select at least 10 measurement positions near the focal point (5 before, 5 after)
- Use a beam profiler to measure beam diameter at each position
- Record axial position (z-coordinate) and corresponding beam diameter (w)
- Fit measured data to hyperbolic function: w²(z) = w₀² + (M²λz/πw₀)²
- Calculate M² value from fitted parameters using least-squares regression

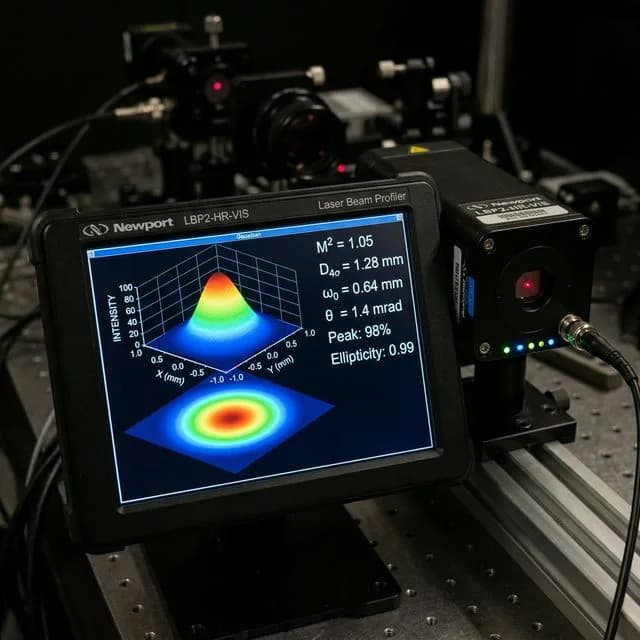

- CCD Beam Profiler: Most common method, provides real-time 2D intensity distribution
- Knife-Edge Scanning System: High accuracy for small beams, slower measurement
- Pinhole Scanning System: Highest precision, primarily for research applications
- Commercial M² Analyzers: Ophir BeamSquared, Thorlabs BP209-IR, DataRay WinCamD-LCM
Typical Measurement Parameters:
Critical Measurement Considerations
- •Equipment Requirement: M² measurement requires professional beam analysis equipment. Most users rely on manufacturer-provided specifications rather than conducting independent measurements.
- •Environmental Sensitivity: Results are affected by temperature gradients, air currents, and vibration. Measurements should be conducted in controlled environments.
- •Method Variability: Different measurement methods (CCD, knife-edge, pinhole) may yield results differing by 3-7%. ISO 11146 specifies CCD as the reference method.
- •Laser Aging: M² degradation of 5-10% over 50,000 hours is typical for quality fiber lasers. Values exceeding 15% degradation indicate optical contamination or component damage requiring service.
Advanced Technical Insights & Application Optimization
Industrial Application Tradeoffs: When Higher M² Outperforms Lower M²
While lower M² values generally indicate better beam quality, the optimal M² for a given application depends on multiple factors beyond just beam quality. Understanding these tradeoffs is essential for equipment selection and maximizing process efficiency.
For precision thin-sheet cutting (0.5-3mm), single-mode fiber lasers with M² < 1.15 provide unmatched performance. The ultra-small focus spot (0.08-0.10mm) enables cutting speeds 30-40% faster than multi-mode lasers on thin materials. Small hole cutting (diameter < material thickness) is only reliably achievable with M² < 1.2.
However, for thick plate cutting (15-30mm), multi-mode lasers with M² = 2.0-2.5 often outperform single-mode systems. The larger focus spot and greater depth of focus provide better tolerance to focus position variations inevitable when cutting thick materials. The energy distribution is more uniform through the thickness, producing better edge quality on thick cuts. Advanced manufacturers like OPMT Laser integrate adaptive beam shaping technology that dynamically adjusts effective M² based on material thickness, providing single-mode performance on thin materials and multi-mode characteristics for thick plate cutting within the same system.
The cost differential is significant: single-mode fiber lasers typically cost 50-100% more than equivalent-power multi-mode systems. For job shops handling diverse work, a 4kW multi-mode laser (M² ≈ 2.0) at $75,000 often provides better ROI than a 3kW single-mode laser (M² ≈ 1.1) at $90,000, despite the lower power, due to versatility across thickness ranges.
Long-Term M² Stability & Laser Lifetime Performance

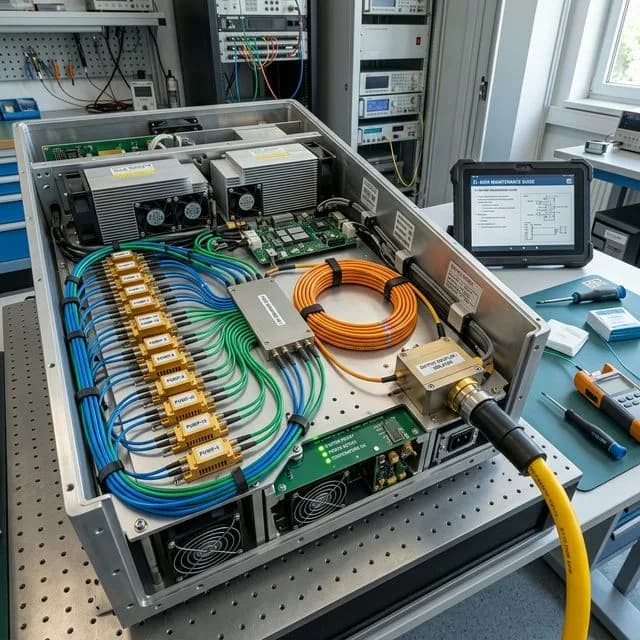

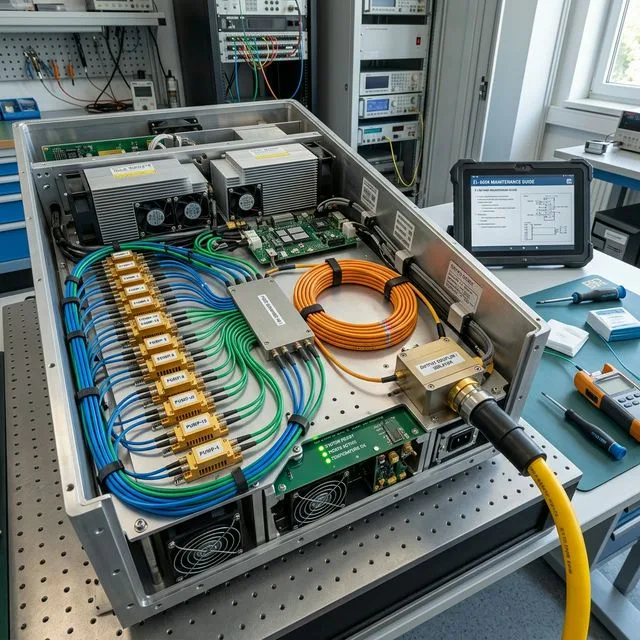

An often-overlooked aspect of M² is its stability over the laser's operational lifetime. High-quality fiber lasers from manufacturers like IPG, Trumpf, and nLIGHT maintain M² within ±5% over 100,000+ hours of operation. Lower-quality systems may experience M² degradation of 20-30% within 20,000-30,000 hours, significantly impacting cutting performance and requiring earlier replacement or costly refurbishment.
M² degradation typically stems from: fiber connector contamination, thermal lens effects in fiber components, pump diode aging, and fiber core damage from back-reflections. Regular maintenance, proper cooling, and quality optics minimize degradation. When evaluating equipment, request long-term M² stability data, not just initial specifications.
3. M² Factor Impact on Cutting Performance
3.1 Focus Spot Size Impact
M² value directly determines the minimum achievable focused spot diameter. Lower M² enables smaller spots with higher energy density, critical for precision cutting and high-speed thin material processing.
Practical Calculation Example
Larger spot diameter reduces energy density, requiring either reduced cutting speed or increased laser power to maintain equivalent performance. For 3mm stainless steel, increasing spot from 0.09mm to 0.21mm typically requires 30-35% speed reduction or 40-50% power increase.
3.2 Cutting Quality Impact
- Smooth, fine edge finish (Ra < 6.3μm achievable)
- Ideal for precision thin-sheet cutting (0.5-3mm)
- Excellent small hole capability (diameter ≥ thickness)
- Sharp corner quality with minimal rounding
- Moderate edge quality (Ra 6.3-12.5μm typical)
- Better suited for thick plate cutting (12-30mm)
- More uniform energy distribution through thickness
- Higher tolerance to focus position variations
3.3 Depth of Focus (DOF) Impact
Depth of Focus (DOF) is the axial distance range over which the beam diameter remains within 1.414× (√2) of its minimum value. DOF directly affects tolerance to focus position errors and material surface variations.
High tolerance to focus position variations. Ideal for thick plate cutting, uneven materials, and applications with thermal warping. DOF typically 6-10mm for multimode 6kW fiber laser.
Concentrated energy with high precision, but sensitive to focus position. Requires precise height control and flat materials. DOF typically 2-4mm for single-mode 3kW fiber laser. Demands capacitive height sensors or active focus control.
4. M² Value Ranges by Laser Type
| Laser Type | Typical M² Range | Beam Characteristics | Primary Applications |
|---|---|---|---|
| Single-Mode Fiber Laser | 1.05 - 1.15 | Exceptional quality, near-Gaussian TEM₀₀ mode | Precision cutting, marking, micromachining, thin materials (<3mm) |
| Multimode Fiber Laser | 1.8 - 2.5 | Uniform energy distribution, large depth of focus | Thick plate cutting (10-30mm), welding, cladding, general fabrication |
| CO₂ Laser | 1.0 - 1.1 | High quality, excellent stability, long wavelength (10.6μm) | Universal cutting (non-metals + metals), engraving, marking, organic materials |
| Disk Laser (Trumpf TruDisk) | 1.8 - 2.2 | High power capability, good beam quality balance | Welding, cutting, surface treatment, high-power applications (4-16kW) |
| Direct Diode Laser | 10 - 50 | Poor beam quality, but compact and efficient | Pump sources for fiber/disk lasers, heat treatment, plastic welding |
5. Laser Selection Based on M² Value
Application-Based Selection Framework
Precision Applications → Choose M² < 1.2
- • Thin-sheet precision cutting (≤3mm): stainless steel, carbon steel, aluminum
- • Small hole cutting (diameter < material thickness): electronics, jewelry
- • Fine marking and engraving: serial numbers, barcodes, detailed graphics
- • Electronics industry, medical devices, aerospace precision components
- • Typical lasers: IPG YLS single-mode (M²<1.1), nLIGHT AFX (M²<1.15)
General Fabrication → Choose M² = 1.5-2.0
- • Medium-thickness cutting (3-12mm): balanced speed and quality
- • Sheet metal fabrication: enclosures, brackets, chassis
- • Optimal balance between precision and efficiency for mixed production
- • Manufacturing mainstream applications: 70-80% of job shops
- • Typical lasers: Trumpf TruFiber (M²≈1.8), Raycus RFL (M²≈2.0), Bodor hybrid mode
Thick Plate & Welding → Choose M² = 2.0-3.0
- • Thick plate cutting (12-30mm): construction equipment, shipbuilding components
- • Welding applications: deep penetration, wide seam, reduced spatter
- • High tolerance to focus position variations (±2-3mm DOF)
- • Heavy industry, shipbuilding, infrastructure, pressure vessel fabrication
- • Typical lasers: IPG YLR multimode (M²≈2.3), Trumpf TruDisk (M²≈2.0), high-power fiber (8-15kW)
Cost vs. Performance Trade-off Analysis
Generally, lasers with lower M² values require more advanced technology and command higher prices. Selection requires finding the optimal balance between cost and performance based on specific application requirements and production volume.
For job shops with diverse work, a 6kW multimode laser (M²≈2.0) at $95k often provides better long-term value than a 3kW single-mode laser (M²≈1.1) at $100k, despite the lower beam quality. The higher power enables processing thicker materials (up to 20mm steel) while still delivering acceptable quality on thin sheets with optimized parameters.
6. M² Relationship to Other Beam Parameters
M² and Beam Parameter Product (BPP)
Beam Parameter Product (BPP) is another commonly used beam quality metric, representing the product of beam waist radius and far-field divergence half-angle. BPP is wavelength-dependent, unlike M².
Lower BPP indicates better beam quality. BPP is the physical manifestation of M², directly affecting achievable focus spot size and thus cutting/welding capability.
M² and Laser Brightness
Laser Brightness is defined as power per unit area per unit solid angle (W/mm²·sr). Brightness is inversely proportional to the square of M², making it a critical performance indicator.
This means that doubling M² reduces brightness by 4×. Therefore, a single-mode laser with lower power can have higher brightness than a multimode laser with significantly higher power.
Comprehensive Evaluation Framework
When selecting laser equipment, M² should not be the sole consideration. A comprehensive evaluation must account for multiple interdependent factors that collectively determine processing capability and long-term value.
- 1Application Requirements:Precision thin-sheet cutting, thick plate cutting, or general fabrication? Material types and thickness ranges?
- 2Laser Power:For equivalent M², higher power enables thicker materials and faster speeds. 6kW multimode (M²=2.0) often outperforms 3kW single-mode (M²=1.1) on materials >8mm.
- 3Wavelength:Fiber lasers (1064nm) excel on metals, CO₂ (10.6μm) on non-metals. Material absorption rates vary significantly by wavelength.
- 4Long-Term M² Stability:Premium lasers maintain M² within ±5% over 100,000+ hours. Budget systems may degrade 20-30% within 30,000 hours, significantly impacting performance.
- 5Total Cost of Ownership:Consider initial purchase, consumables (nozzles, lenses, gas), maintenance, power consumption, and productivity over 5-7 year lifecycle.
