Laser Cutting Troubleshooting Guide

Organized troubleshooting solutions by category

Quick Start: Most Common Issues

Start here: These 3 issues account for 65% of all cutting quality problems

#1 Burrs on Edge (40%)

Quick Check: Focus position → Gas pressure

→ See Issue 1

#2 Excessive Dross (15%)

Quick Check: Gas pressure → Nozzle condition

→ See Issue 4

#3 Incomplete Penetration (10%)

Quick Check: Laser power → Cutting speed

→ See Issue 2

🚨Emergency Procedures

Fire or Excessive Smoke

  1. Press EMERGENCY STOP immediately
  2. Activate assist gas to blow out flames
  3. Do NOT open machine doors until smoke clears
  4. If fire persists >10 seconds, use CO₂ extinguisher
  5. Evacuate and call emergency services if uncontrollable

Laser Exposure Incident

  1. Press EMERGENCY STOP immediately
  2. Do NOT rub eyes if exposure suspected
  3. Seek immediate medical attention for eye exposure
  4. Document incident details (time, power level, duration)
  5. Report to safety officer per facility protocol

Equipment Damage Assessment

  1. Press EMERGENCY STOP if abnormal sounds/behavior
  2. Do NOT restart until visual inspection complete
  3. Check for collision damage (nozzle, lens, mirrors)
  4. Inspect for coolant leaks or electrical damage
  5. Contact certified technician before resuming operation

Safe Shutdown Procedure

  1. Complete current cut or press PAUSE (not E-stop)
  2. Reduce laser power to 0% in CNC software
  3. Allow chiller to run for 5 minutes cooldown
  4. Close gas cylinder valves
  5. Power off laser source, then CNC, then chiller
Safety First: When in doubt, press EMERGENCY STOP and consult qualified personnel. Equipment can be repaired; injuries cannot be undone. See Safety Operations Guide for complete protocols.

Section 1: Cutting Quality Issues

Issue 1: Burrs on Cut Edge

Positive (+1mm)MaterialFocal PointGood for thin materialsZero (0mm)MaterialFocal PointStandard positionNegative (-1mm)MaterialFocal PointGood for thick materialsLaser BeamFocal Point

Focus position significantly affects cut quality. Adjust based on material thickness and desired edge characteristics.

Possible Causes (Frequency)
  • Incorrect focus position (40%)
  • Insufficient assist gas pressure (30%)
  • Cutting speed too high (20%)
  • Worn/contaminated nozzle (10%)
Solutions
  • Readjust focus position (refer to Focus Adjustment Guide)
  • Increase gas pressure to recommended range
  • Reduce speed by 15-20% and retest
  • Clean or replace nozzle (see Nozzle Guide)

Issue 2: Incomplete Penetration

Possible Causes
  • Focus position too high
  • Insufficient power or energy density
  • Insufficient gas pressure or flow
Solutions
  • Lower focus position
  • Increase power or reduce speed (refer to Power Density Calculator)
  • Increase gas pressure/check for blockages

Issue 3: Non-Perpendicular Cut Surface

✓ Correct AlignmentEven Gas FlowPerpendicular Cut✗ MisalignedUneven Gas FlowAngled CutLaser BeamAssist Gas

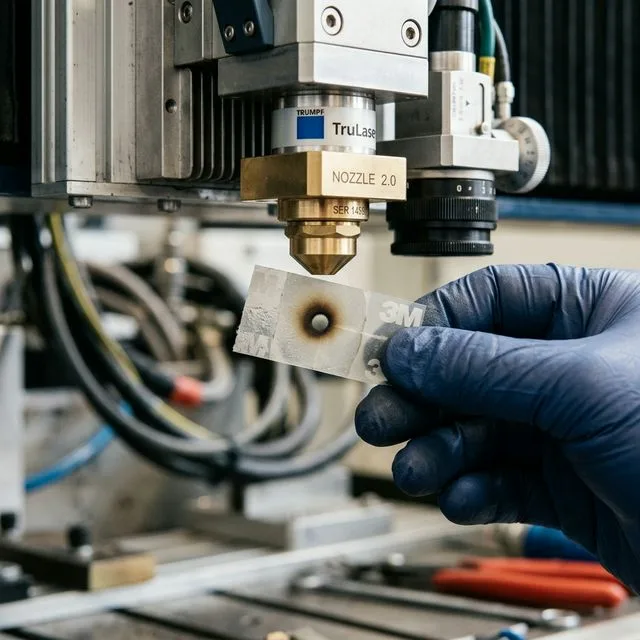

Proper beam centering in nozzle bore is critical for perpendicular cuts and consistent quality.

Possible Causes
  • Focus offset/beam axis misalignment
  • Nozzle misalignment
  • Parameter mismatch (speed too high, insufficient power)
Solutions
  • Calibrate beam path and focus
  • Check nozzle concentricity (see Nozzle Alignment Guide)
  • Reduce speed or increase power

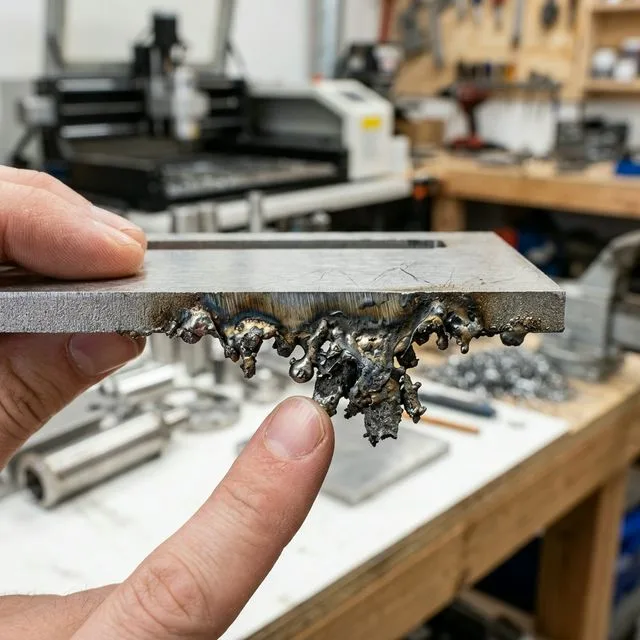

Issue 4: Excessive Dross Formation

Possible Causes
  • Insufficient assist gas pressure (60%)
  • Cutting speed too slow (25%)
  • Nozzle blockage or wear (10%)
  • Focus position too low (5%)
Solutions
  • Increase gas pressure (reference Gas Pressure Chart)
  • Increase cutting speed by 10-15%
  • Clean or replace nozzle, check orifice diameter
  • Raise focus position slightly (+0.5 to +1mm)

Issue 5: Rough Cut Edge (High Striations)

Possible Causes
  • Incorrect focus position
  • Vibration in cutting head or gantry
  • Unsuitable cutting speed
  • Insufficient power density
Solutions
  • Optimize focus position (see Focus Position Guide)
  • Check mechanical components for wear or looseness
  • Adjust speed ±15% to find optimal zone
  • Increase laser power or reduce speed

Issue 6: Burning or Excessive Heat-Affected Zone

Possible Causes
  • Cutting speed too slow
  • Excessive laser power
  • Poor heat dissipation
Solutions
  • Increase cutting speed
  • Reduce laser power output
  • Use positive focus position for thin materials
  • Consider using nitrogen instead of oxygen

Issue 7: Inconsistent Cut Quality

Possible Causes
  • Unstable laser power output
  • Material thickness or quality variation
  • Unstable gas pressure
  • Thermal lens effect in optics
Solutions
  • Check laser source stability and diagnostics
  • Verify material batch consistency
  • Install gas pressure regulator/stabilizer
  • Clean protective window and check lens condition

Issue 8: Corner Overburn

Possible Causes
  • Deceleration at corners causes heat accumulation
  • Lack of corner power compensation
Solutions
  • Enable corner power reduction in CNC settings
  • Reduce power by 10-20% at sharp corners
  • Increase corner speed if machine supports
  • See Process Optimization Guide for advanced corner strategies

Issue 9: Pierce Marks or Spatter

Possible Causes
  • Excessive pierce power
  • Insufficient pierce gas pressure
  • Too short pierce delay time
Solutions
  • Reduce pierce power to 60-80% of cutting power
  • Increase pierce gas pressure slightly
  • Extend pierce time by 100-200ms
  • Use softer pierce ramp profile in CNC

Section 2: Equipment Operation Faults

Issue 10: Laser Not Emitting

Checklist
  • Emergency stop released/interlocks closed
  • Chiller running with proper temperature/water level
  • Laser ready status indicator
Solutions
  • Reset interlocks, release emergency stop
  • Restore cooling conditions
  • Contact maintenance personnel for diagnosis

Issue 11: Chiller Alarm

Possible Causes
  • Water temperature too high/insufficient water level
  • Water circuit blockage or dirty filter
  • Ambient temperature exceeds specification
Solutions
  • Add deionized water and check level sensor
  • Clean water filter and check pump operation
  • Improve workshop ventilation
  • Check chiller condenser for dust accumulation

Issue 12: Cutting Head Collision Detection

Possible Causes
  • Actual collision with workpiece or clamps
  • Capacitive sensor malfunction or contamination
  • Incorrect Z-axis zero point
Solutions
  • Inspect nozzle for damage, check fixture clearances
  • Clean capacitive sensor, recalibrate if needed
  • Recalibrate Z-axis zero point and height sensing
  • Verify program coordinates and machine limits

Issue 13: Axis Motion Errors

Possible Causes
  • Servo drive faults or encoder errors
  • Mechanical obstruction or binding
  • Lubrication insufficient
Solutions
  • Check servo drive error codes and diagnostics
  • Inspect guide rails and drive components
  • Lubricate linear guides and ball screws
  • Check encoder cables for damage

Issue 14: Gas Supply Problems

GASCylinder200 barP1PressureRegulatorSet: 15 barP2FilterValveSolenoidCuttingHeadNozzleCheck Point 1:Cylinder PressureCheck Point 2:Working PressureCheck Point 3:Valve Operation

Gas system troubleshooting: Check cylinder level → Verify regulator setting → Inspect filter → Test valve operation → Measure cutting head pressure.

Possible Causes
  • Gas cylinder empty or pressure too low
  • Regulator malfunction
  • Line leaks or valve closed
Solutions
  • Check cylinder pressure gauge, replace if needed
  • Inspect and calibrate pressure regulator
  • Perform leak test with soap solution (see Gas Safety Procedures)
  • Verify all gas valves in proper position

Issue 15: Emergency Stop Activated

Possible Causes
  • E-stop button pressed (operator or safety trigger)
  • Safety interlock open (door, light curtain)
  • External equipment fault signal
Solutions
  • Release E-stop button by rotating clockwise
  • Check all safety interlocks and doors
  • Verify external equipment status (chiller, exhaust)
  • Review machine diagnostics for fault source

Section 3: Laser Source Problems

Issue 16: Laser Power Degradation

Possible Causes
  • Laser diode aging (fiber laser)
  • Contaminated optics reducing transmission
  • Thermal management issues
  • Power supply degradation
Solutions
  • Perform laser power calibration/measurement
  • Clean all optical elements systematically
  • Check cooling water temperature and flow
  • Contact manufacturer for diode replacement assessment

Issue 17: Laser Won't Start or Fire

Possible Causes
  • Safety interlocks not satisfied
  • Laser source fault or protection mode
  • Communication error between controller and laser
Solutions
  • Verify all interlocks closed (chiller, doors, emergency stop)
  • Check laser ready/fault indicators on control panel
  • Inspect communication cables and connections
  • Review laser error log for fault codes

Issue 18: Unstable Laser Output

Possible Causes
  • Power supply instability
  • Thermal fluctuations in laser cavity
  • Cooling system inconsistency
Solutions
  • Install power stabilizer/UPS if needed
  • Allow adequate warmup time (15-30 min)
  • Check water temperature stability (±1°C)
  • Verify power supply voltage within spec

Issue 19: Laser Overheating Alarm

Possible Causes
  • Insufficient cooling water flow or temperature
  • High ambient temperature
  • Duty cycle exceeded
Solutions
  • Check chiller operation and set point
  • Inspect water flow rate and filter condition
  • Reduce duty cycle or implement cooling breaks
  • Improve workshop air conditioning

Section 4: Control System Faults

Issue 20: CNC Not Responding

Possible Causes
  • Software crash or frozen
  • Communication loss with machine controller
  • Computer hardware malfunction
Solutions
  • Restart CNC software and controller
  • Check Ethernet/serial cable connections
  • Verify network settings and IP addresses
  • Test with alternative control computer if available

Issue 21: Program Won't Load or Run

Possible Causes
  • File format incompatibility
  • Corrupted program file
  • Memory full or insufficient resources
Solutions
  • Verify file format compatibility (.nc, .gcode, etc.)
  • Re-generate program from CAM software
  • Delete old unused programs to free memory
  • Check program for syntax errors

Issue 22: Machine Coordinates Off/Lost

Possible Causes
  • Power interruption during operation
  • Encoder feedback loss
  • Mechanical collision shifted position
Solutions
  • Perform machine homing sequence
  • Re-establish work coordinate system (WCS)
  • Check encoder cables and connections
  • Verify home switches functioning properly

Issue 23: Height Sensing Malfunction

Possible Causes
  • Capacitive sensor contamination
  • Sensor calibration drift
  • Material surface conditions interfering
Solutions
  • Clean sensor surface with alcohol wipe
  • Recalibrate height sensor (see Standoff Calibration)
  • Verify sensor mounting and electrical connections
  • Test on clean material surface

Section 5: Optical Path Problems

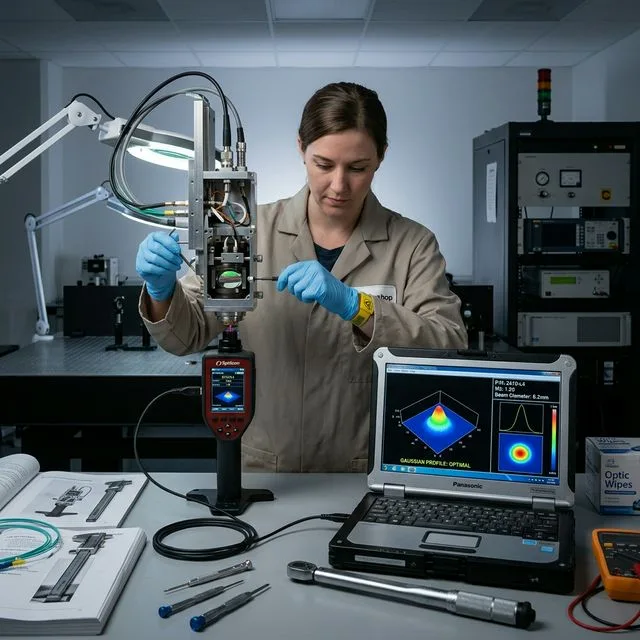

Issue 24: Beam Alignment Drift

Possible Causes
  • Mirror misalignment from vibration or thermal expansion
  • Loose mirror mounts
  • Building settlement affecting machine frame
Solutions
  • Perform beam alignment check with burn paper
  • Adjust mirror angles systematically from laser source
  • Tighten all mirror mounting hardware
  • Schedule quarterly alignment verification

Issue 25: Optics Contamination

Possible Causes
  • Spatter or smoke deposition on protective window
  • Dust accumulation on mirrors/lenses
  • Condensation from temperature changes
Solutions
  • Clean protective window daily with lens tissue
  • Inspect and clean focusing lens weekly
  • Check collimator and beam delivery optics monthly
  • Maintain positive air pressure in beam path

Issue 26: Focusing Lens Damage

Possible Causes
  • Excessive power density causing thermal damage
  • Spatter strike from piercing operations
  • Reflective material backreflection
Solutions
  • Replace damaged lens immediately
  • Verify nozzle diameter adequate for power (see Nozzle Selection)
  • Increase standoff distance for reflective materials
  • Optimize pierce parameters to reduce spatter

Section 6: Engraving Issues

Issue 27: Uneven Engraving Depth

Possible Causes
  • Non-flat work surface or material warping
  • Inconsistent focal distance across engraving area
  • Z-axis height sensing malfunction
  • Variable material density or coating thickness
Solutions
  • Verify work table flatness with precision level (tolerance: ±0.1mm over 500mm)
  • Enable automatic height sensing for uneven surfaces
  • Use vacuum table or weight fixtures to flatten material
  • Calibrate Z-axis and verify focus consistency across bed
  • Test material batch consistency before production run

Issue 28: Raster Engraving Artifacts/Banding

Possible Causes
  • Servo acceleration/deceleration inconsistency
  • Backlash in motion system (belts, rails)
  • Incorrect scanning gap or line spacing
  • Power modulation frequency mismatch with scan speed
  • Bi-directional scanning offset error
Solutions
  • Reduce acceleration values by 20-30% in CNC settings
  • Inspect and tension drive belts (proper tension: 3-5mm deflection under finger pressure)
  • Check linear rail bearing wear and lubrication
  • Optimize scan gap: typically 0.1-0.15mm for 500 DPI equivalent
  • Calibrate bi-directional offset compensation in controller
  • Use uni-directional scanning for highest quality (50% speed penalty)

Issue 29: Vector Engraving Quality Issues

Possible Causes
  • Speed too high for material response time
  • Insufficient power for desired depth
  • Corner speed reduction causing depth variation
  • Focus position not optimized for shallow engraving
Solutions
  • Reduce engraving speed to 50-150 mm/s for fine detail
  • Use positive focus (+0.5 to +2mm) for shallow surface engraving
  • Enable corner power compensation (reduce 15-25% at corners)
  • Multiple passes at lower power provide better control than single high-power pass
  • See Focus Position Guide for engraving-specific focus settings

Issue 30: Image Distortion or Skewing

Possible Causes
  • Gantry not square to bed (perpendicularity error)
  • Encoder scaling factor incorrect
  • Belt slip or irregular tension
  • Software scaling or resolution mismatch
Solutions
  • Perform gantry squareness calibration (measure diagonal distances, adjust until equal within 0.5mm)
  • Engrave test grid pattern (100x100mm square) and measure actual dimensions
  • Adjust encoder counts-per-mm in controller if scaling error detected
  • Verify belt tension equal on both sides of gantry
  • Check image import resolution matches machine DPI settings

Issue 31: Inconsistent Power in Engraving Mode

Possible Causes
  • PWM/analog power modulation frequency too low
  • Laser minimum power threshold issues
  • Power supply ripple or instability
  • Software grayscale conversion errors
Solutions
  • Increase PWM frequency to 20-25 kHz (fiber lasers) or 5-10 kHz (CO2 lasers)
  • Calibrate laser minimum power setting (typically 10-15% for stable output)
  • Perform power ramp test: 10-100% in 10% increments, measure actual output
  • Use dithering algorithms (Floyd-Steinberg, Jarvis) for better grayscale rendering
  • Check controller DAC resolution (minimum 8-bit, prefer 12-bit for smooth gradients)

CO2 vs Fiber Laser Troubleshooting Comparison

Laser Type Differences in Troubleshooting

Issue TypeCO2 Laser (10.6μm)Fiber Laser (1.06μm)Key Differences
Reflective Materials (Al, Cu, Brass)Extremely difficult, high reflectivity (90-95%) can damage optics. Avoid or use special coatings.Manageable with proper settings. Reflectivity 70-85%. Increase nitrogen pressure to 16-20 bar, reduce speed 30-40%.Fiber lasers handle reflective metals far better due to wavelength absorption characteristics
Focus SensitivityLarger focal spot (0.15-0.3mm), more forgiving focus tolerance (±1-2mm). Longer Rayleigh length.Smaller focal spot (0.05-0.15mm), critical focus positioning (±0.5mm). Shorter depth of focus.Fiber lasers require more precise focus calibration and maintenance
Power Degradation PatternGradual tube wear over 2,000-10,000 hours. Rechargeable tubes available. Monitor voltage increase as indicator.Diode aging over 30,000-100,000 hours. Non-serviceable by user. Monitor total operating hours and power calibration.Fiber lasers have 3-10x longer operational life but cannot be refurbished
Optics ContaminationZnSe lenses and mirrors highly susceptible to moisture, spatter. Clean every 40-100 hours. Cost: $150-600/lens.Quartz protective window primary concern. Clean every 100-300 hours. Fiber delivery path sealed. Cost: $50-200/window.Fiber lasers have simpler optics maintenance with sealed beam delivery
Beam Alignment IssuesMultiple mirror alignment critical. Thermal drift affects alignment. Quarterly calibration recommended. Complex adjustment procedure.Fiber cable delivery eliminates most alignment issues. Collimator and focus lens only. Stable over temperature. Annual check sufficient.Fiber lasers drastically reduce beam alignment troubleshooting frequency
Thin Material (<1mm) CuttingExcellent for thin materials. Lower power density suitable for delicate work. Minimal heat-affected zone achievable.Excessive power density can cause breakthrough damage. Use defocused beam (+2 to +4mm) or reduce power to 20-40%.CO2 lasers naturally better suited for very thin material processing
Thick Material (>15mm) CuttingLimited capability above 20-25mm even at high power (4-6kW). Oxygen assist essential for carbon steel.Superior performance up to 30-40mm with 6-12kW systems. Better power density penetration. Nitrogen or oxygen assist.Fiber lasers excel at thick plate cutting due to higher power density
Electrical Efficiency8-15% wall-plug efficiency. Higher operating costs. Significant cooling requirements (chiller capacity 2-3x laser power).25-40% wall-plug efficiency. Lower operating costs. Reduced cooling needs (chiller capacity 1-1.5x laser power).Fiber lasers offer 60-70% reduction in energy consumption per watt of laser output
Startup/Warmup Time15-30 minute warmup required for thermal stability. Power instability if started cold.Instant-on capability. Full power available within 1-2 minutes. No thermal warmup needed.Fiber lasers eliminate warmup-related troubleshooting issues
Non-Metal MaterialsExcellent for wood, acrylic, leather, fabric, paper. Primary choice for organic materials and plastics.Limited effectiveness on non-metals due to poor absorption at 1.06μm wavelength. Not recommended for organic materials.CO2 lasers are the standard for non-metal material processing
Selection Guidance: CO2 lasers excel at non-metals, thin materials, and applications requiring larger spot sizes. Fiber lasers dominate metal processing, especially reflective metals, thick plates, and high-speed production. When troubleshooting, always consider your laser type's inherent characteristics before assuming equipment malfunction.

Advanced Diagnostic Strategies

Systematic Troubleshooting Methodology

Effective troubleshooting follows the OBSERVE-ISOLATE-TEST-VERIFY approach. First, document the exact symptom with quantitative data (e.g., "burr height 0.5mm on bottom edge" vs. "bad cut quality"). Second, change one variable at a time—adjusting focus, pressure, and speed simultaneously makes it impossible to identify root cause. Third, test with controlled samples using consistent material batches and positions. Finally, verify the fix by running production parts, not just test coupons.

Common Diagnostic Pitfalls: Assuming the most complex cause first (often it's a dirty lens or loose nozzle), failing to check consumables before adjusting parameters, and making multiple changes without documenting which one resolved the issue. Professional laser operators maintain detailed fault logs tracking symptoms, conditions, actions taken, and outcomes—this historical data accelerates future troubleshooting by 40-60%.

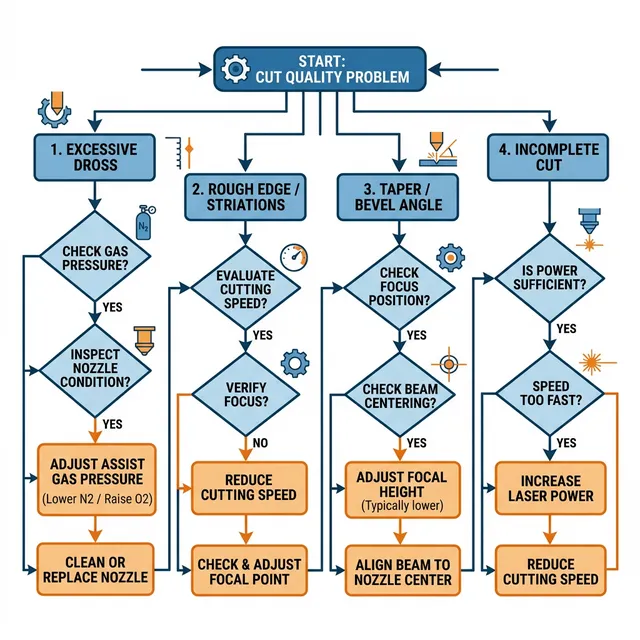

Quick Diagnostic Decision Tree

SymptomPrimary CheckSecondary CheckReference
Burrs on edgeFocus positionGas pressureFocus Guide
Incomplete penetrationLaser powerCutting speedParameters
Excessive drossGas pressureNozzle conditionGas Chart
Angled cut surfaceNozzle alignmentBeam centeringNozzle Alignment
Inconsistent qualityOptics cleanlinessMaterial variationOptics Guide
Corner overburnPower compensationSpeed settingsProcess Guide

Material-Specific Troubleshooting

Stainless Steel Issues

Symptom: Yellow/blue discoloration on nitrogen cutting. Cause: Insufficient nitrogen pressure (<12 bar) or purity (<99.5%). Solution: Increase pressure to 14-18 bar, verify nitrogen purity with oxygen analyzer (target: <100ppm O₂). Refer to Assist Gas Guide for gas purity specifications.

Symptom: Heavy dross on air cutting. Cause: Excessive oxidation in melt pool. Solution: Increase speed by 10-15% to reduce heat input, use positive focus (+0.5 to +1.0mm), ensure sharp focus spot for better energy concentration.

Aluminum Challenges

Symptom: Inconsistent cutting or frequent breakthrough failures. Cause: High reflectivity (90%+) causes power instability. Solution: Use fiber lasers with aluminum-optimized wavelength control, increase nitrogen pressure to 16-20 bar for strong melt ejection, reduce speed by 30-40% vs. equivalent steel thickness. See aluminum cutting parameters.

Symptom: Severe edge oxidation. Cause: Aluminum's high thermal conductivity spreads heat rapidly. Solution: Mandatory high-purity nitrogen (99.9%+), increase gas flow rate by 20-30% compared to steel cutting.

Thick Plate Cutting Problems

Symptom: Taper or non-perpendicular edges on 15mm+ material. Cause: Insufficient depth of focus or power density gradient through thickness. Solution: Use negative focus (-2 to -4mm) to position focal waist mid-thickness, reduce speed to allow adequate melt time. Consult Focus Position Guide for thick plate strategies.

Carbon Steel Oxygen Cutting

Symptom: Excessive slag or rough bottom edge. Cause: Oxygen pressure too high or cutting speed too slow causing over-oxidation. Solution: Reduce oxygen pressure to 0.3-0.6 bar for thin materials (1-6mm), increase speed by 10-15%, ensure nozzle standoff at 0.7-1.0mm. Reference Speed Chart.

Brass Cutting Challenges

Symptom: Inconsistent penetration or reflective damage to optics. Cause: Brass has high reflectivity (85-90% for CO2, 70-80% for fiber) and high thermal conductivity causing rapid heat dissipation. Zinc vaporization at 907°C can create fumes.

Solution: Fiber lasers strongly preferred over CO2. Use high-purity nitrogen (99.9%+) at 16-20 bar pressure. Reduce speed by 25-35% compared to steel of equivalent thickness. Use negative focus (-1 to -2mm) for materials >3mm. Ensure excellent fume extraction due to zinc oxide vapor. Monitor protective window for contamination—brass produces more optical fouling than steel.

Copper Cutting (Pure and Alloys)

Symptom: Extremely difficult to cut, frequent failures, or laser damage. Cause: Copper has the highest reflectivity (95%+ for CO2, 90-95% for fiber at room temperature) and thermal conductivity (400 W/m·K) of common metals. Heat dissipates faster than laser can melt material.

Solution for Fiber Lasers: Only fiber lasers can reliably cut copper. Use maximum available power (minimum 3kW for thin sheets, 6-12kW for >3mm). Preheat material to 200-300°C if possible to reduce reflectivity. Nitrogen pressure 18-22 bar. Extremely slow speeds: 50-70% of steel cutting speed. Use burst/pulsed mode if available for piercing. Monitor cutting head for reflected energy damage.

CO2 Laser Warning: Pure copper cutting with CO2 lasers is generally not feasible and dangerous to optics. Reflectivity can cause catastrophic damage. Only copper alloys with <80% copper content (like brass or bronze) are suitable for CO2 processing, and even then with extreme caution.

Titanium and Titanium Alloys

Symptom: Excessive oxidation, discoloration, or embrittlement of cut edges. Cause: Titanium is highly reactive with oxygen at elevated temperatures, forming brittle titanium oxide layer. However, material cuts relatively easily due to low thermal conductivity and high laser absorption.

Solution: Mandatory use of inert gas—argon preferred over nitrogen for critical applications (aerospace, medical). Argon provides better shielding against oxidation. Pressure: 12-16 bar. If using nitrogen (cost consideration), increase purity to 99.99%+ and pressure to 16-20 bar. Use positive focus (+0.5 to +1mm) for clean top edge. Speed comparable to stainless steel but power may need 10-15% increase.

Quality Inspection: Titanium cut edges should be silver-gray. Blue, purple, or gold discoloration indicates oxygen contamination and potential embrittlement. For critical applications, perform dye penetrant testing or metallurgical inspection of heat-affected zone. See Edge Quality Standards for titanium-specific criteria.

Preventive Diagnostics and Predictive Maintenance

Early Warning Signs: Gradual quality degradation often precedes catastrophic failures. Monitor trending metrics: average cutting speed reduction (>5% decline over 2 weeks may indicate power loss or optics degradation), increasing pierce time (lens contamination), rising dross formation (nozzle wear), or beam alignment drift requiring frequent recalibration. Address these indicators proactively before they cause production downtime.

Consumables Life Tracking: Implement hour meters on critical components: protective windows (200-400 hours depending on material), nozzles (80-200 hours), focus lenses (1,000-2,000 hours). Replace on schedule rather than waiting for failure—a $120 protective window replaced preventively costs far less than emergency downtime and potential cutting head damage ($5,000-12,000). See Nozzle Life Management.

Data-Driven Optimization: Modern CNC systems log every cut with metadata (material, thickness, power, speed, gas pressure). Analyze this data quarterly to identify parameter drift, operator inconsistencies, or material batch variations. High-performing fabrication shops reduce troubleshooting time by 50-70% through systematic data analysis compared to reactive troubleshooting. Explore Process Optimization strategies.

Environmental Factors Affecting Laser Performance

Temperature Effects

Optimal Range: 18-25°C (64-77°F). Outside this range, beam alignment drift can occur due to thermal expansion of machine frame and optical mounts. Every 10°C temperature change can shift beam position by 0.1-0.3mm, affecting cut quality.

Troubleshooting: If quality issues appear seasonally or during temperature swings, check beam alignment and recalibrate focus. Install HVAC or thermal barriers to maintain stable workshop temperature. Monitor chiller water temperature stability (±1°C required).

Humidity Impact

Optimal Range: 40-60% relative humidity (RH). High humidity (>70% RH) causes condensation on optics, especially when equipment is cooler than ambient. Low humidity (<30% RH) increases static electricity, attracting dust to optics.

Troubleshooting: Moisture spots on lenses indicate condensation issues—install dehumidifier or increase workshop temperature. Rapid optics contamination suggests static buildup—use anti-static spray on work surfaces and increase humidity. Store optics in sealed containers with desiccant packs.

Vibration from External Sources

Sensitivity: Laser cutting requires vibration isolation below 0.05g (0.5 m/s²). External vibration from nearby machinery, forklifts, or building resonance causes inconsistent cut quality, especially visible in fine details and corners.

Troubleshooting: Perform cut quality test when suspected sources are off vs. on. Install vibration isolation pads under machine feet (typical isolation: 90% reduction at 5-50 Hz). Separate laser from stamping presses, grinders, or heavy traffic areas. Use smartphone accelerometer apps to measure baseline vibration.

Air Quality and Fume Extraction

Requirements: Proper fume extraction (minimum 1,000-2,000 CFM for typical cutting bed) prevents smoke recirculation that contaminates optics. Inadequate extraction also creates hazardous work environment and can trigger fire alarms.

Troubleshooting: Visible smoke in work area or rapid protective window contamination indicates insufficient extraction. Check filter loading (differential pressure gauge should read <2 inches H₂O). Verify exhaust fan operation and duct integrity. Clean or replace filters per manufacturer schedule (typically every 2-6 months depending on utilization).

Best Practice: Install environmental monitoring system tracking temperature, humidity, and vibration. Many modern CNC controllers support sensor inputs for automated data logging. Correlating environmental data with quality metrics enables predictive maintenance and rapid root cause analysis.

Preventive Maintenance Schedule

ComponentInspection FrequencyReplacement IntervalWarning Signs
Protective WindowDaily (visual), Weekly (clean)200-400 hours or when contamination cannot be removedYellowing, pitting, stubborn stains, reduced cutting performance
Focusing LensWeekly (inspect), Bi-weekly (clean)1,000-2,000 hours or when damagedVisible coating damage, thermal cracks, power loss, beam quality degradation
NozzleDaily (check centering/damage)80-200 hours (single-layer), 500-1,000 hours (ceramic)Oval orifice, spatter buildup, inconsistent gas flow, burrs increase
Mirrors (CO2 only)Monthly (inspect), Quarterly (clean)2-5 years or when coating damagedPower loss, beam alignment drift, visible coating deterioration
Collimator (Fiber only)Quarterly (inspect)5,000-10,000 hours or when damagedBeam quality issues, focal spot enlargement, power instability
Chiller Water/FilterWeekly (level check), Monthly (quality check)Water: 6-12 months, Filter: 3-6 monthsDiscolored water, reduced flow rate, temperature instability, algae growth
Drive BeltsMonthly (tension check)2,000-4,000 hours or when wornExcessive deflection (>5mm), fraying, position loss, belt dust accumulation
Linear Rails/GuidesMonthly (lubrication), Quarterly (wear check)5-10 years depending on usageIncreased noise, rough motion, visible wear tracks, positioning errors
Assist Gas FiltersMonthly (inspect), Clean as needed6-12 months or when pressure drop >0.5 barReduced pressure downstream, moisture in gas line, cutting quality decline
Exhaust FiltersMonthly (pressure check)2-6 months depending on material typesReduced suction, visible smoke in workspace, pressure >2 inches H₂O
Capacitive SensorWeekly (clean), Monthly (calibrate)3-5 years or when unreliableInconsistent sensing, false triggers, calibration drift, spatter buildup
Beam Alignment (CO2)Quarterly (verify), Semi-annually (full calibration)N/A (adjustment only)Off-center burn patterns, position-dependent quality variation
Cost-Benefit Analysis: Preventive maintenance costs approximately 15-25% of reactive maintenance over 5-year equipment life. A $150 protective window replaced on schedule prevents potential $5,000-12,000 cutting head damage from spatter strike. Track maintenance hours and consumable costs to optimize intervals for your specific operating conditions.

Process Parameter Guides

Focus Position Adjustment Guide

Learn proper focus calibration techniques and troubleshoot focus-related issues

Nozzle Selection & Maintenance

Choose correct nozzles, check alignment, and optimize standoff distance

Material Thickness Parameters

Reference cutting parameters for different materials and thicknesses

Assist Gas Selection Chart

Optimize gas type, pressure, and flow rates for your application

Optimization & Safety

Process Optimization Guide

Advanced strategies for maximizing cutting efficiency and quality

Cutting Speed Reference Chart

Find optimal cutting speeds for various materials and power levels

Edge Quality Standards

Understand quality classifications and inspection criteria

Safe Operation Procedures

Essential safety protocols and emergency procedures

Related Calculators & Tools

Power Density Calculator

Calculate required power for your cutting application

Kerf Width Calculator

Estimate kerf width and compensation values

Gas Flow Calculator

Determine gas consumption and monthly costs

References & Data Sources:
  • Manufacturer Service Manuals: TRUMPF, Bystronic, Mazak, Amada, and Prima Power troubleshooting guides
  • Industry Standards: ISO 9013 (Thermal Cutting Quality Standards), AWS D1.1 (Structural Welding Code)
  • Technical Documentation: Precitec and Raytools cutting head maintenance procedures
  • Field Experience: Aggregated data from production environments and certified laser operators

Disclaimer: This troubleshooting guide provides general diagnostic procedures based on industry best practices and manufacturer documentation. Actual troubleshooting procedures may vary by equipment model, laser type, control system, and specific operating conditions. Always consult your equipment manufacturer's service manual for model-specific procedures and safety requirements. For complex issues or when in doubt, contact qualified service technicians.

Pro Tip: Establish a "first-piece inspection and anomaly logging" system for faster problem reproduction and identification. Maintain detailed fault logs tracking symptoms, environmental conditions, actions taken, and outcomes. Systematic documentation can improve troubleshooting efficiency by 50-70% and build valuable institutional knowledge.

Last Updated: November 2, 2025 | Page Version: 3.0 (Enhanced with Engraving, Emergency Procedures, Laser Type Comparison)

Questions or suggestions? Contact Us
