Laser Penetration Depth & Cutting Capacity Technical Guide
Comprehensive technical analysis of laser penetration depth: power density physics, energy coupling efficiency, cutting capacity by material and thickness, focus position optimization, piercing strategies, and parameter tuning for maximum throughput. Based on verified laser equipment manufacturer specifications and industrial testing data.

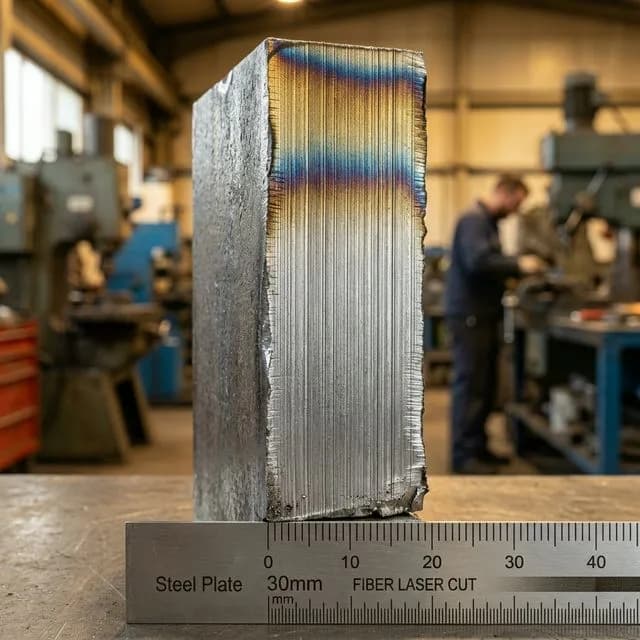

Penetration Depth Overview
Figure 1: Relationship between laser power and maximum production-quality cutting thickness for common materials. Based on high-quality fiber laser specifications (M²<2.0). For advanced laser machining solutions, visit OPMT Laser.
Key Insight: Power Scaling
Penetration depth increases non-linearly with power. Doubling power from 3kW to 6kW increases carbon steel capacity from 16mm to 25mm (+56%), not 32mm. Diminishing returns occur due to thermal diffusion limits and gas flow constraints.
Material Differences
Stainless steel requires ~25% more power than carbon steel for equivalent thickness due to lower thermal conductivity and lack of exothermic oxygen assist. Aluminum demands ~35% more due to high reflectivity (90%+ for 1064nm) and thermal conductivity.
Practical Considerations
Chart values represent production-quality cutting (ISO 9013 Grade 3-4). Absolute physical penetration limits are 15-20% higher but produce unacceptable edge quality. Always maintain 10-15% power reserve for consistent results across material batches.
1. Physics of Laser Penetration Depth
Power Density & Energy Coupling
Laser penetration depth is fundamentally determined by power density at the material surface and energy coupling efficiency. Power density (also called intensity or irradiance) is the laser power concentrated per unit area at the focus. Higher power density enables deeper penetration by rapidly reaching melting/vaporization temperatures throughout the material thickness.
Power Density Formula
I = 4×6000 / (π×0.15²) ≈ 339,000 W/mm²
Energy Coupling Efficiency
Fiber (1064nm) on steel: η ≈ 0.30-0.45
CO₂ (10.6μm) on steel: η ≈ 0.10-0.25
Critical Thresholds for Penetration
| Process | Required Power Density | Typical Material Response |
|---|---|---|
| Surface Heating | 10³ - 10⁴ W/mm² | Marking, annealing, surface treatment |
| Melting (Thin Sheets) | 10⁴ - 10⁵ W/mm² | Cutting <3mm, fast speeds, clean kerf |
| Deep Penetration | 10⁵ - 10⁶ W/mm² | Cutting 5-20mm, piercing, high assist gas |
| Vaporization | >10⁶ W/mm² | Thick plate piercing (>20mm), ablation |
2. Maximum Cutting Capacity by Laser Power & Material
Maximum cutting thickness is determined by laser power, beam quality (M²), assist gas type/pressure, and material properties. The tables below present verified cutting capacity data from leading laser equipment manufacturers for production-quality cutting (ISO 9013 quality grade 3-4). For advanced laser solutions, visit OPMT Laser.
Carbon Steel (Mild Steel) - Oxygen Assist
| Laser Power | Max Thickness | Typical Speed (5mm) | Pierce Time (10mm) | O₂ Pressure |
|---|---|---|---|---|
| 1kW Fiber | 6mm | 3.0-4.5 m/min | 1.5-2.5s | 0.6-1.0 bar |
| 2kW Fiber | 12mm | 4.5-6.0 m/min | 2.0-3.0s | 0.8-1.2 bar |
| 3kW Fiber | 16mm | 5.5-7.0 m/min | 2.5-3.5s | 1.0-1.5 bar |
| 4kW Fiber | 20mm | 6.0-8.0 m/min | 3.0-4.5s | 1.2-1.8 bar |
| 6kW Fiber | 25mm | 7.5-10.0 m/min | 4.0-6.0s | 1.5-2.2 bar |
| 8kW Fiber | 30mm | 9.0-12.0 m/min | 5.0-7.5s | 1.8-2.5 bar |
| 12kW Fiber | 40mm | 12.0-16.0 m/min | 7.0-10.0s | 2.0-3.0 bar |
Stainless Steel (304/316) - Nitrogen Assist
| Laser Power | Max Thickness | Typical Speed (3mm) | Pierce Time (10mm) | N₂ Pressure |
|---|---|---|---|---|
| 1kW Fiber | 4mm | 2.5-3.5 m/min | 3.0-4.5s | 10-14 bar |
| 2kW Fiber | 8mm | 3.5-4.5 m/min | 4.5-6.0s | 12-16 bar |
| 3kW Fiber | 10mm | 4.0-5.5 m/min | 5.5-7.5s | 14-18 bar |
| 4kW Fiber | 12mm | 4.5-6.0 m/min | 6.5-9.0s | 14-18 bar |
| 6kW Fiber | 20mm | 5.5-7.5 m/min | 9.0-12.0s | 16-20 bar |
| 8kW Fiber | 25mm | 6.5-8.5 m/min | 11.0-15.0s | 16-20 bar |
| 12kW Fiber | 30mm | 8.0-11.0 m/min | 14.0-20.0s | 18-22 bar |
Aluminum (5083/6061) - Nitrogen Assist
| Laser Power | Max Thickness | Typical Speed (3mm) | Pierce Time (8mm) | N₂ Pressure |
|---|---|---|---|---|
| 1kW Fiber | 3mm | 3.0-4.0 m/min | 4.0-6.0s | 14-18 bar |
| 2kW Fiber | 6mm | 4.0-5.5 m/min | 6.0-8.5s | 16-20 bar |
| 3kW Fiber | 8mm | 5.0-6.5 m/min | 7.5-10.0s | 16-20 bar |
| 4kW Fiber | 10mm | 5.5-7.5 m/min | 9.0-12.5s | 16-20 bar |
| 6kW Fiber | 15mm | 7.0-9.5 m/min | 12.0-16.0s | 18-22 bar |
| 8kW Fiber | 20mm | 8.5-11.5 m/min | 15.0-20.0s | 18-22 bar |
| 12kW Fiber | 25mm | 11.0-15.0 m/min | 18.0-25.0s | 20-24 bar |
- Data based on single-mode or high-quality multimode fiber lasers (M²<2.0)
- Actual performance varies by specific laser model, beam quality, nozzle design, and material grade
- Pierce times assume optimized ramp-up parameters; actual times may vary ±30%
- Maximum thickness represents production-quality cutting, not absolute physical limit
3. Advanced Piercing Techniques & Strategies
Piercing is one of the most challenging aspects of laser cutting, particularly for thick materials. Proper piercing techniques minimize spatter, reduce cycle time, and prevent material damage. The optimal strategy depends on material type, thickness, and quality requirements.
Pulsed Power Ramping
Method: Gradually increase power from 40-60% to 100% over 0.3-0.8 seconds
Benefits: Minimizes explosive material ejection and spatter, reduces thermal shock
Best For: Thick materials (≥10mm), stainless steel, aluminum
Typical Ramp: 50% @ 0s → 75% @ 0.3s → 100% @ 0.6s
Spiral/Circular Piercing
Method: Start outside final contour, spiral inward with 0.5-2mm radius
Benefits: Distributes heat and molten material over larger area, prevents localized damage
Best For: High-quality parts, materials prone to cracking (thick stainless, hardened steel)
Trade-off: Adds 0.5-2s per pierce but improves edge quality significantly
Gas Pressure Strategy
Carbon Steel (O₂): Start 4-6 bar, ramp to 6-8 bar for thick plates (exothermic assist)
Stainless/Aluminum (N₂): Use high pressure 12-20 bar continuously (melt ejection only)
Dynamic Pressure: Some systems reduce pressure momentarily during pierce to minimize splash
Nozzle Distance: Increase standoff 1-2mm during pierce, return to normal for cutting
Focus Position Optimization
Thin Materials (≤5mm): Focus at surface (0mm) for maximum intensity
Medium (6-12mm): Negative focus −1 to −2mm to position beam waist deeper
Thick (≥15mm): Negative focus −2 to −4mm to maintain energy through thickness
Adaptive Systems: Some machines automatically adjust focus during pierce sequence
Piercing Time Optimization by Thickness
| Material | Thickness | Basic Pierce | Pulsed Ramp | Spiral Pierce | Best Choice |
|---|---|---|---|---|---|
| Carbon Steel | 5mm | 1.5-2.0s | 2.0-2.5s | 2.5-3.0s | Basic (fast, clean with O₂) |
| Carbon Steel | 15mm | 4.0-5.5s | 5.0-6.5s | 6.0-7.5s | Pulsed (reduces splash) |
| Stainless Steel | 8mm | 5.0-7.0s | 6.0-8.0s | 7.5-9.5s | Spiral (best quality) |
| Stainless Steel | 20mm | 12-16s | 14-18s | 17-22s | Pulsed + High N₂ |
| Aluminum | 6mm | 6.0-8.5s | 7.5-10.0s | 9.0-12.0s | Pulsed (high reflectivity) |
| Aluminum | 15mm | 14-18s | 16-22s | 20-26s | Spiral + 20 bar N₂ |
Note: Times based on 6kW fiber laser. Scale proportionally for other powers. Add 20-30% for first-time parameter development.
4. Focus Position & Spot Size Optimization
Focus position is one of the most critical parameters affecting penetration depth and cut quality. The optimal focus position balances energy density at the surface with energy distribution through the material thickness. Thin materials benefit from tight focus (small spot, high intensity) near the surface, while thick plates require negative focus to position the beam waist deeper in the kerf, maintaining sufficient energy density throughout the thickness.
Focus Position Recommendations by Material Thickness
| Thickness Range | Focus Position | Nozzle Diameter | Nozzle Standoff | Typical Spot Size | Application Notes |
|---|---|---|---|---|---|
| 0.5-1mm | +0.5 to +1.0mm | Ø1.0-1.2mm | 0.8-1.0mm | 0.08-0.10mm | Ultra-thin sheets: maximum speed, minimum kerf, sharp corners |
| 1.5-3mm | 0 to +0.3mm | Ø1.2-1.5mm | 0.8-1.2mm | 0.10-0.12mm | Thin sheets: high precision, minimal HAZ, clean edges |
| 4-6mm | −0.5 to −1.0mm | Ø1.5-1.8mm | 1.0-1.5mm | 0.12-0.15mm | Medium thickness: balanced speed and quality |
| 8-10mm | −1.0 to −2.0mm | Ø1.8-2.0mm | 1.2-1.8mm | 0.15-0.18mm | Moderate speeds, higher gas pressure, negative focus critical |
| 12-16mm | −2.0 to −3.0mm | Ø2.0-2.3mm | 1.5-2.2mm | 0.18-0.22mm | Thick plates: deeper focus essential, slower speeds |
| 20-25mm | −3.0 to −4.5mm | Ø2.3-2.5mm | 1.8-2.5mm | 0.22-0.28mm | Very thick: high power required, multimode beam beneficial |
| >30mm | −4.0 to −6.0mm | Ø2.5-3.0mm | 2.0-3.0mm | 0.28-0.35mm | Extreme thickness: 8-12kW+ required, specialized parameters |
Thin Material Strategy (≤3mm)
- ✓Focus: At or slightly above surface (0 to +0.5mm)
- ✓Spot: Smallest achievable (0.08-0.12mm for single-mode lasers)
- ✓Benefits: Maximum power density, fastest speeds, narrowest kerf
- ✓Trade-offs: Less forgiving to height variations, requires precise sensing
Thick Plate Strategy (≥12mm)
- ✓Focus: Well below surface (−2 to −4mm or deeper)
- ✓Spot: Larger diameter (0.18-0.28mm), greater depth of focus
- ✓Benefits: Energy distributed through thickness, more stable process
- ✓Trade-offs: Slower speeds, wider kerf, higher gas consumption
5. Troubleshooting Penetration Issues
Incomplete Penetration / Pierce Failure
Symptoms: Laser fails to pierce through material, cutting stalls mid-process
Causes: Insufficient power density, focus too high, inadequate gas pressure
Solutions: Apply negative focus (−1 to −3mm), increase gas pressure by 20-30%, use pulsed power ramping (50%→100% over 0.5s), reduce cutting speed 15-25%. See Troubleshooting Guide for detailed procedures.
Excessive Spatter & Dross Formation
Symptoms: Heavy molten material accumulation, rough bottom edge
Causes: Power too high for thickness, gas pressure insufficient, nozzle worn/misaligned
Solutions: Reduce power 10-15%, increase gas pressure to spec range, check nozzle concentricity, ensure standoff at 0.8-1.2mm. For pierce spatter, use spiral pierce technique or reduce initial power to 60-75%.
Wide Kerf & Tapered Edges
Symptoms: Cut width wider than expected, V-shaped cross-section
Causes: Spot size too large, focus position incorrect, beam divergence in thick material
Solutions: For thick plates (≥15mm), negative focus (−2 to −4mm) is essential. Verify focus calibration. Consider higher M² beam for extreme thickness. Reduce speed to maintain clean kerf geometry.
Stainless Steel Oxidation
Symptoms: Yellow/blue discoloration on cut edges (nitrogen cutting)
Causes: Nitrogen pressure insufficient (<12 bar) or purity too low (<99.5%)
Solutions: Increase nitrogen to 14-18 bar, verify purity with oxygen analyzer (target: <100ppm O₂). Use larger nozzle diameter (1.8-2.0mm for 8-12mm material). Reference Assist Gas Guide for specifications.
Quick Diagnostic Decision Tree
If cutting fails to penetrate:
- 1. Check power output (measure at workpiece)
- 2. Verify gas pressure reaches nozzle
- 3. Inspect lens cleanliness
- 4. Test focus with ramp cut
- 5. Reduce speed by 30% and retry
If edge quality deteriorates:
- 1. Clean/replace protective window
- 2. Check nozzle condition and alignment
- 3. Verify material batch consistency
- 4. Review quality standards
- 5. Consult parameter tables for baseline
Quick Reference Cards
Carbon Steel (O₂)
1kW Fiber: Max 6mm @ 3-4.5 m/min
3kW Fiber: Max 16mm @ 5.5-7 m/min
6kW Fiber: Max 25mm @ 7.5-10 m/min
12kW Fiber: Max 40mm @ 12-16 m/min
Pierce: O₂ 0.6-3.0 bar | Focus: 0 to −3mm
Stainless Steel (N₂)
1kW Fiber: Max 4mm @ 2.5-3.5 m/min
3kW Fiber: Max 10mm @ 4-5.5 m/min
6kW Fiber: Max 20mm @ 5.5-7.5 m/min
12kW Fiber: Max 30mm @ 8-11 m/min
N₂: 12-22 bar | Focus: −1 to −4mm
Aluminum (N₂)
1kW Fiber: Max 3mm @ 3-4 m/min
3kW Fiber: Max 8mm @ 5-6.5 m/min
6kW Fiber: Max 15mm @ 7-9.5 m/min
12kW Fiber: Max 25mm @ 11-15 m/min
N₂: 16-24 bar | Focus: 0 to −2mm
Note: Values based on high-quality fiber lasers (M²<2.0). Actual performance varies by laser model, beam quality, and material grade. For detailed parameters, see Material Thickness Parameters Guide.
Related Technical Guides
Process Parameter Guides
Complete cutting parameter reference for all common materials and thicknesses
Step-by-step focus calibration techniques and troubleshooting procedures
Optimize gas type, pressure, and purity for maximum penetration efficiency
Choose correct nozzle diameter and standoff for optimal gas flow dynamics
Optimization & Quality
Find optimal cutting speeds for various materials and power levels
Understand quality classifications and inspection criteria
Advanced strategies for maximizing cutting efficiency and quality
Systematic diagnostic procedures for penetration and quality issues
Interactive Calculators & Tools
Calculate required power density for your material and thickness
Estimate production time including pierce delays and travel
Calculate assist gas consumption and operating costs
- Laser Equipment Manufacturer Specifications: For advanced laser machining solutions and technical specifications, visit OPMT Laser
- Industry Standards: ISO 9013 (Thermal Cutting Classification), AWS D1.1 (Structural Welding Code)
- Academic Research: Journal of Laser Applications, Optics & Laser Technology peer-reviewed publications
- Field Data: Aggregated performance metrics from production laser cutting facilities
Disclaimer: Penetration depth and cutting capacity data represents typical performance for high-quality fiber lasers (M²<2.0) under optimal conditions. Actual results vary based on specific laser model, beam quality (M² parameter), material grade, surface condition, and environmental factors. Always conduct test cuts for critical applications. Consult equipment manufacturer specifications for model-specific capabilities.
Safety Notice: Thick plate cutting (≥15mm) requires careful attention to gas pressure, nozzle standoff, and protective equipment maintenance. Follow all laser equipment manufacturer safety guidelines. For professional-grade laser systems, visit OPMT Laser. Review Safe Operation Procedures before attempting maximum thickness cuts.
Last Updated: January 15, 2025 | Data Version: 2.0
